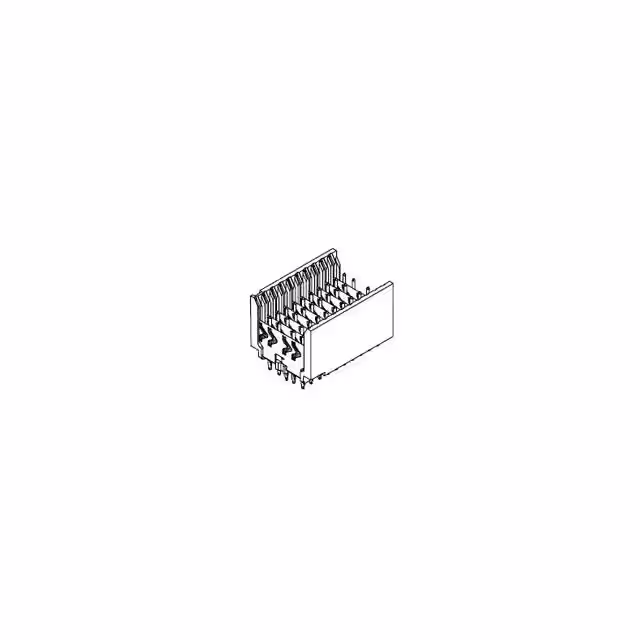

74695-2504

Manufacturer :

Molex

Product Category :

Specialized

Pitch :

0.079 (2.00mm)

Current Rating (Amps) :

1A

Voltage Rating Max :

120VDC/120VAC

EU RoHS :

Compliant

Type :

VHDM

Durability :

200 Cycles

MIL Conformance :

No

Operating Temp Range :

-55C to 105C

Color :

Black

ECCN (US) :

EAR99

Product Weight (g) :

9.267

Product Length (mm) :

50

Reach Compliance Code :

Compliant

Product Depth (mm) :

14.5

Mounting :

Through Hole

Insertion Force-Max :

.3892 N

Housing Color :

Black

Contact Gender :

Male

Rated Current (Signal) :

1 A

Voltage Rating :

120V

ECCN Code :

EAR99

Tradename :

VHDM-HSD?

Product Height (mm) :

12.3

Packaging :

Tube

Number of Contacts :

100

PCB Contact Row Spacing :

2.2606 mm

Mounting Option 1 :

GUIDE SLOT

Contact Finish :

Gold

Body Orientation :

Straight

Subcategory :

Headers and Edge Type Connectors

Minimum Operating Temperature (°C) :

-55

Gender :

HDR

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Connector Usage :

-

Termination Method :

Press Fit

Connector Type :

Header, Male Pins

Package :

Box

Number Of PCB Rows :

5

Material Flammability Rating :

UL94 V-0

Housing Material :

Thermoplastic

Number of Contact Rows :

5

Mounting Type :

Through Hole

Operating Temperature :

-55°C ~ 105°C

Mating Contact Pitch :

0.079 inch

Plating Thickness :

30u inch

Series :

VHDM-HSD 74695

Total Number of Contacts :

100

Contact Layout, Typical :

-

Automotive :

No

Contact Finish Thickness :

30.0µin (0.76µm)

Pitch (mm) :

2(mm)

Maximum Current Rating (A) :

1/Contact

Maximum Operating Temperature (°C) :

105

Mixed Contacts :

No

Number of Columns :

25

Reference Standard :

UL

Filter Feature :

No

Product Status :

Active

Contact Plating :

Gold Over Nickel

Body Breadth :

0.571 inch

Insulator Color :

Black

Mating Cycle (Cycles) :

200

Connector Style :

VHDM

Contact Material :

COPPER ALLOY

Terminal Pitch :

2 mm

Mounting Style :

Through Hole

Reliability :

COMMERCIAL

Body Depth :

0.484 inch

Termination :

Press-Fit

Option :

GENERAL PURPOSE

Terminal Pitch (mm) :

2

Contact Resistance :

10 MΩ

Body/Shell Style :

Receptacle

Dielectric Withstanding Voltage :

750VAC V

DIN Conformance :

No

Number of Positions :

100

Number of Rows :

5

Features :

Shielded

UL Flammability Code :

94V-0

Speed Rating (Gbps) :

5

Manufacturer :

Molex

Current Rating (Max) :

1/Contact(A)

Polarization Key :

POLARIZED HOUSING

Maximum Voltage Rating :

120VAC|120VDC

HTS Code :

8536.69.40.40

Mounting Option 2 :

LOCKING

Additional Feature :

25 SHIELD CONTACTS IN 1 ROW

Mating Contact Row Spacing :

0.089 inch

PPAP :

No

Number of Positions Loaded :

All

Terminal Length :

0.098 inch

IEC Conformance :

No

Contact Pattern :

RECTANGULAR

Insulation Resistance :

10000000000 Ω

Termination Type :

Press Fit
