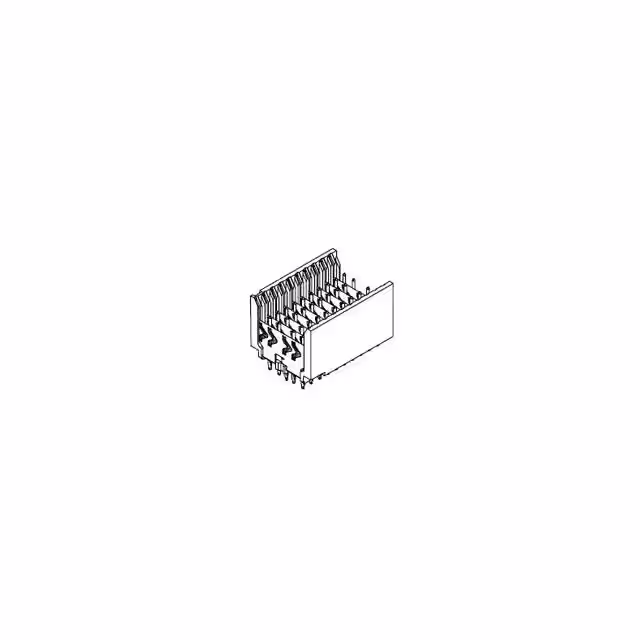

74695-8502

Manufacturer :

Molex

Product Category :

Specialized

Insulation Resistance :

10000000000 Ω

Dielectric Withstanding Voltage :

750VAC V

Packaging :

Tube

Connector Style :

VHDM

Rated Current (Signal) :

1 A

Termination Type :

Press Fit

Total Number of Contacts :

100

IEC Conformance :

No

Number of Columns :

25

Pitch :

0.079 (2.00mm)

Product Status :

Active

Option :

GENERAL PURPOSE

Number of Contacts :

100(POS)

Polarization Key :

POLARIZED HOUSING

Contact Plating :

Gold Over Nickel

Product Depth (mm) :

14.5(mm)

UL Flammability Code :

94V-0

Gender :

HDR

Mounting Type :

Through Hole

Reach Compliance Code :

Compliant

Pitch (mm) :

2(mm)

Product Height (mm) :

12.3(mm)

Contact Gender :

Male

Terminal Length :

0.098 inch

PCB Contact Row Spacing :

2.2606 mm

Contact Finish Thickness :

30.0µin (0.76µm)

Features :

Shielded

Mating Contact Pitch :

0.079 inch

Filter Feature :

No

Manufacturer :

Molex

Body Orientation :

Straight

Reliability :

COMMERCIAL

Connector Usage :

-

Insulator Color :

Black

PCB Contact Pattern :

RECTANGULAR

Product Length (mm) :

50(mm)

Material Flammability Rating :

UL94 V-0

Connector Type :

Header, Male Pins

Housing Color :

Black

Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Number of Rows :

5

Terminal Pitch :

2 mm

Mounting Style :

Through Hole

MIL Conformance :

No

Insertion Force-Max :

.3892 N

Additional Feature :

25 SHIELD CONTACTS IN 1 ROW

Termination Method :

Press Fit

Mounting Option 1 :

GUIDE SLOT

Durability :

200 Cycles

Number of Positions :

100

Subcategory :

Headers and Edge Type Connectors

Contact Finish :

Gold

Body/Shell Style :

Receptacle

Type :

High Speed

Operating Temperature :

-55°C ~ 105°C

Mixed Contacts :

No

Number of Contact Rows :

4

Contact Layout, Typical :

-

Mounting Option 2 :

LOCKING

Termination :

Press-Fit

Contact Material :

COPPER ALLOY

Plating Thickness :

30u inch

Factory Lead Time :

3 Weeks, 1 Day

Body Breadth :

0.571 inch

Color :

Black

Current Rating (Amps) :

1A

Mating Contact Row Spacing :

0.089 inch

Package :

Tube

Number of Positions Loaded :

All

Pbfree Code :

yes

Number Of PCB Rows :

5

Contact Resistance :

10 MΩ

Body Depth :

0.484 inch

Reference Standard :

UL

Voltage Rating :

120V

Series :

VHDM-HSD 74695
