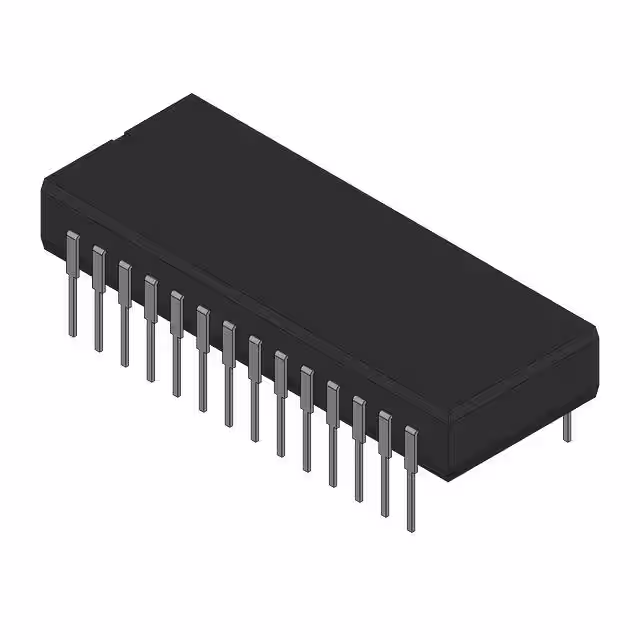

AD9002SD/883B

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Terminal Pitch :

2.54 mm

Series :

AD9002

Technology :

Bipolar

Converter Type :

ADC, FLASH METHOD

Reference Type :

External

Linearity Error-Max (EL) :

0.4688%

Terminal Position :

Dual

Sampling Rate (Per Second) :

150M

Package :

Bulk

Terminal Finish :

TIN LEAD

Package Shape :

RECTANGULAR

Configuration :

ADC

Operating Temperature :

-55°C ~ 125°C

Surface Mount :

No

Manufacturer :

Analog Devices Inc

Architecture :

-

Width :

15.24 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Through Hole

Temperature Grade :

Military

Seated Height-Max :

5.72 mm

Power Supplies :

-5.2 V

Data Interface :

Parallel

Number of A/D Converters :

1

Number of Functions :

1

JESD-30 Code :

R-CDIP-T28

ECCN Code :

3A001.A.2.C

Number of Terminals :

28

Voltage - Supply, Analog :

-

Qualification Status :

Not Qualified

Subcategory :

Analog to Digital Converters

Number of Analog In Channels :

1

Voltage - Supply, Digital :

-

Number of Inputs :

1

Pin Count :

28

HTS Code :

8542.39.00.01

Conversion Time-Max :

0.008 µs

Screening Level :

MIL-STD-883 Class B

Product Status :

Active

Package / Case :

28-CDIP (0.600, 15.24mm)

Output Bit Code :

BINARY

Reach Compliance Code :

Compliant

JESD-609 Code :

e0

Terminal Form :

THROUGH-HOLE

Number of Bits :

8

Supplier Device Package :

28-CDIP

Negative Supply Voltage-Nom :

-5.2 V

Output Format :

PARALLEL, 8 BITS

Input Type :

-

Analog Input Voltage-Min :

-2 V

Ratio - S/H:ADC :

0:1

Features :

-
