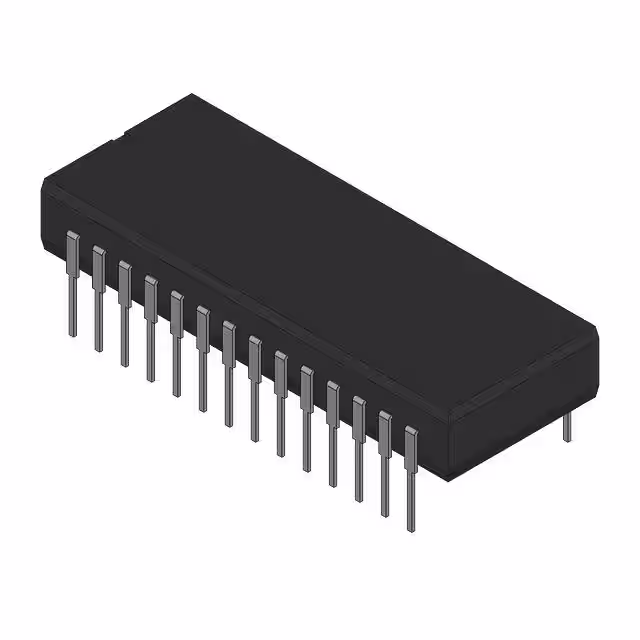

AD9002SD

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Pbfree Code :

No

Number of Inputs :

8

Terminal Pitch :

2.54 mm

Mounting Type :

Through Hole

Output Bit Code :

BINARY

JESD-609 Code :

e0

Terminal Form :

THROUGH-HOLE

Temperature Grade :

Military

Manufacturer :

Rochester Electronics LLC

Terminal Position :

Dual

Voltage - Supply, Analog :

-5.46V ~ -4.94V

Supplier Device Package :

28-CDIP

Ratio - S/H:ADC :

0:1

Reach Compliance Code :

Unknown

Configuration :

ADC

Terminal Finish :

TIN LEAD

Voltage - Supply, Digital :

-5.46V ~ -4.94V

Package Shape :

RECTANGULAR

Data Interface :

Parallel

Architecture :

-

Operating Temperature :

-55°C ~ 125°C

Surface Mount :

No

Qualification Status :

COMMERCIAL

Technology :

Bipolar

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Sampling Rate (Per Second) :

150M

Number of Analog In Channels :

1

Seated Height-Max :

5.08 mm

Number of Functions :

1

Number of A/D Converters :

1

Output Format :

PARALLEL, 8 BITS

Number of Terminals :

28

Package :

Bulk

Features :

-

Analog Input Voltage-Max :

0.1 V

Product Status :

Active

Analog Input Voltage-Min :

-2.1 V

Reference Type :

External

Number of Bits :

8

Converter Type :

ADC, FLASH METHOD

Package / Case :

28-CDIP (0.600, 15.24mm)

Pin Count :

28

Negative Supply Voltage-Nom :

-5.2 V

Input Type :

-

JESD-30 Code :

R-CDIP-T28

Linearity Error-Max (EL) :

0.4688%

Series :

AD9002

Width :

7.62 mm
