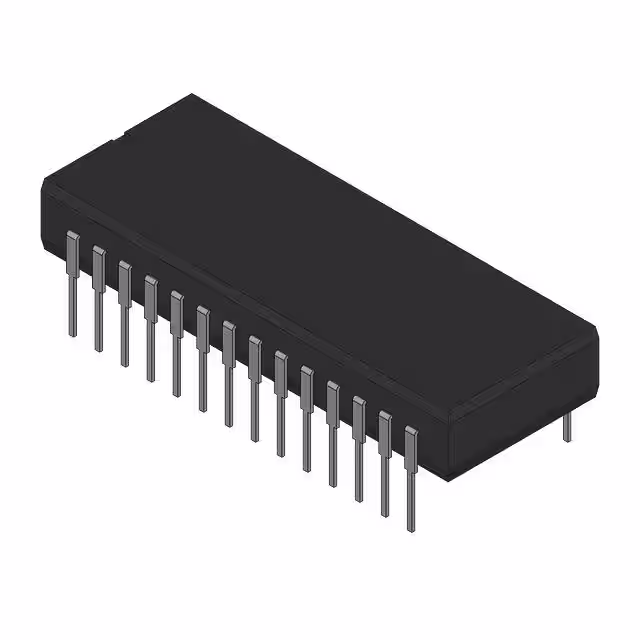

AD9012SQ/883B

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Min Supply Voltage :

-4.94V

RoHS Status :

Non-RoHS Compliant

Output Format :

PARALLEL, 8 BITS

Max Supply Voltage :

-5.46V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Screening Level :

38535Q/M;38534H;883B

Number of Elements :

1

JESD-609 Code :

e0

Sample and Hold / Track and Hold :

SAMPLE

Temperature Grade :

Military

Qualification Status :

Not Qualified

Sampling Rate :

100 Msps

Terminal Pitch :

2.54mm

Polarity :

Unipolar

Resolution :

1 B

Package / Case :

CDIP

Converter Type :

ADC, PROPRIETARY METHOD

Number of Bits :

8

Supply Voltage :

5V

Number of Terminations :

28

Max Operating Temperature :

125°C

Output Bit Code :

BINARY

Power Supplies :

5-5.2V

Mount :

Through Hole

Packaging :

Rail/Tube

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Min Operating Temperature :

-55°C

Number of Pins :

28

Linearity Error-Max (EL) :

0.4688%

Height Seated (Max) :

5.59mm

Number of Functions :

1

Pin Count :

28

Integral Nonlinearity (INL) :

1.2 LSB

Number of Analog In Channels :

1

Negative Supply Voltage-Nom :

-5.2V

Terminal Finish :

TIN LEAD

Terminal Position :

Dual
