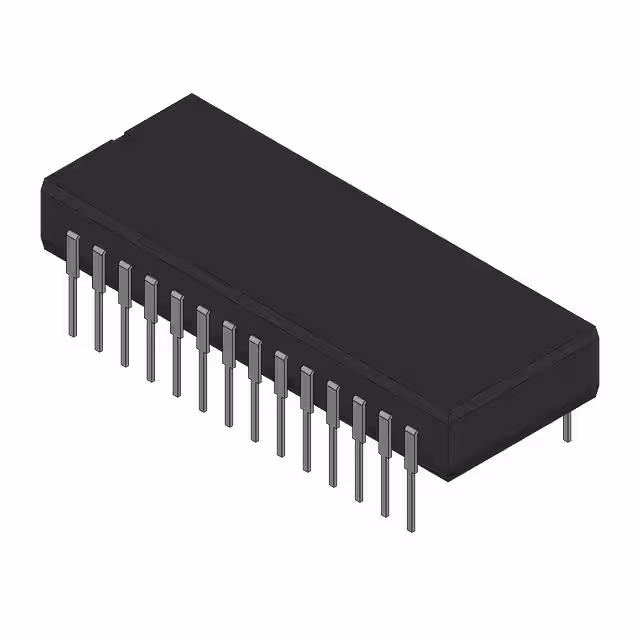

AD9002TD

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Terminal Form :

THROUGH-HOLE

Analog Input Voltage-Max :

0.1 V

Terminal Pitch :

2.54 mm

Number of Bits :

8

Package / Case :

28-CDIP (0.600, 15.24mm)

Linearity Error-Max (EL) :

0.4688%

Number of Analog In Channels :

1

Product Status :

Active

Operating Temperature :

-55°C ~ 125°C

Sampling Rate (Per Second) :

150M

Converter Type :

ADC, FLASH METHOD

Ratio - S/H:ADC :

0:1

JESD-609 Code :

e0

Technology :

Bipolar

Number of Functions :

1

JESD-30 Code :

R-CDIP-T28

Series :

AD9002

Voltage - Supply, Digital :

-5.46V ~ -4.94V

Surface Mount :

No

Package :

Bulk

Terminal Finish :

TIN LEAD

Number of Terminals :

28

Qualification Status :

COMMERCIAL

Temperature Grade :

Military

Reach Compliance Code :

Unknown

Pbfree Code :

No

Features :

-

Negative Supply Voltage-Nom :

-5.2 V

Number of Inputs :

8

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Position :

Dual

Output Format :

PARALLEL, 8 BITS

Output Bit Code :

BINARY

Architecture :

-

Width :

7.62 mm

Pin Count :

28

Configuration :

ADC

Mounting Type :

Through Hole

Number of A/D Converters :

1

Package Shape :

RECTANGULAR

Reference Type :

External

Supplier Device Package :

28-CDIP

Analog Input Voltage-Min :

-2.1 V

Voltage - Supply, Analog :

-5.46V ~ -4.94V

Manufacturer :

Rochester Electronics LLC

Input Type :

-

Seated Height-Max :

5.08 mm

Data Interface :

Parallel
