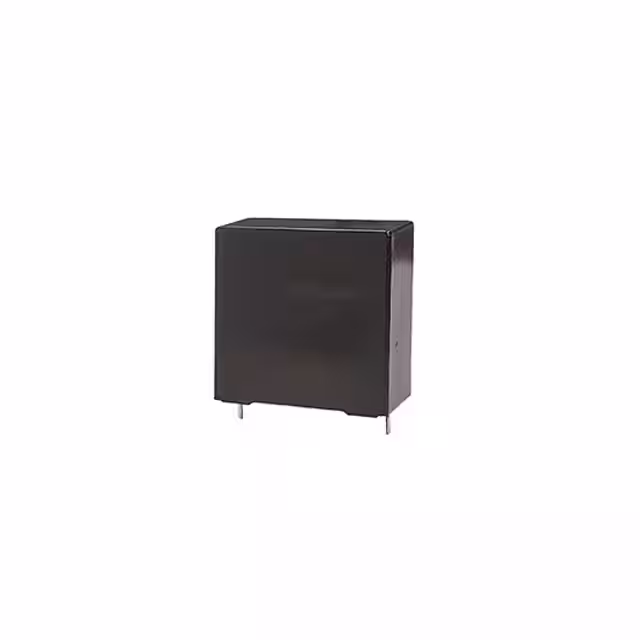

BLH605K901A072

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Width :

33 mm

Voltage Rating - AC :

-

Maximum Operating Temperature :

+ 105 C

Termination Style :

Axial

Package / Case :

Radial

Product Type :

Film Capacitors

Length :

32 mm

Product :

DC Link Film Capacitors

Termination :

PC Pins

Height :

18 mm

Lead Diameter :

0.8 mm

Applications :

Automotive; DC Link, DC Filtering

Subcategory :

Capacitors

Series :

BLH

Product Status :

Active

Ratings :

AEC-Q200

Minimum Operating Temperature :

- 40 C

Tolerance :

±10%

ESR :

11 mOhms

Height - Seated (Max) :

1.331" (33.80mm)

ESR (Equivalent Series Resistance) :

11 mOhms

Mounting Type :

Through Hole

Operating Temperature :

-40°C ~ 105°C

Capacitance :

6 μF

Number of Pins :

2 Pin

Lead Spacing :

1.083" (27.50mm)

Lead Style :

Straight

Voltage Rating - DC :

900V

Size / Dimension :

1.260" L x 0.709" W (32.00mm x 18.00mm)

Package :

Bulk

Dielectric Material :

Polypropylene (PP), Metallized

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life
