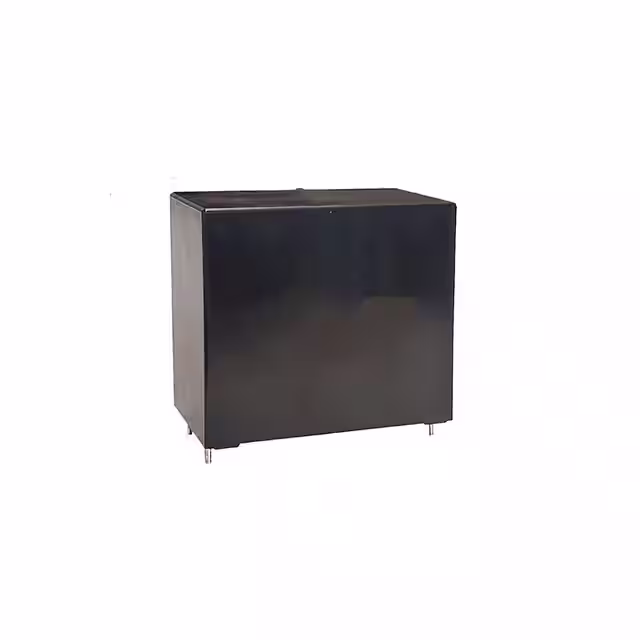

BLH606K451C064

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

ESR (Equivalent Series Resistance) :

4.5 mOhms

Height - Seated (Max) :

1.772" (45.00mm)

ESR :

4.5 mOhms

Number of Pins :

4 Pin

Length :

57.5 mm

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Operating Temperature :

-40°C ~ 105°C

Lead Diameter :

1.2 mm

Termination :

PC Pins

Maximum Operating Temperature :

+ 105 C

Voltage Rating - DC :

450V

Lead Style :

Straight

Height :

30 mm

Tolerance :

±10%

Product Type :

Film Capacitors

Subcategory :

Capacitors

Capacitance :

60 μF

Size / Dimension :

2.264" L x 1.181" W (57.50mm x 30.00mm)

Product :

DC Link Film Capacitors

Mounting Type :

Through Hole

Width :

45 mm

Lead Spacing :

2.067" (52.50mm)

Package / Case :

Radial - 4 Leads

Voltage Rating - AC :

-

Ratings :

AEC-Q200

Package :

Bulk

Termination Style :

Axial

Applications :

Automotive; DC Link, DC Filtering

Minimum Operating Temperature :

- 40 C

Series :

BLH

Dielectric Material :

Polypropylene (PP), Metallized

Product Status :

Active
