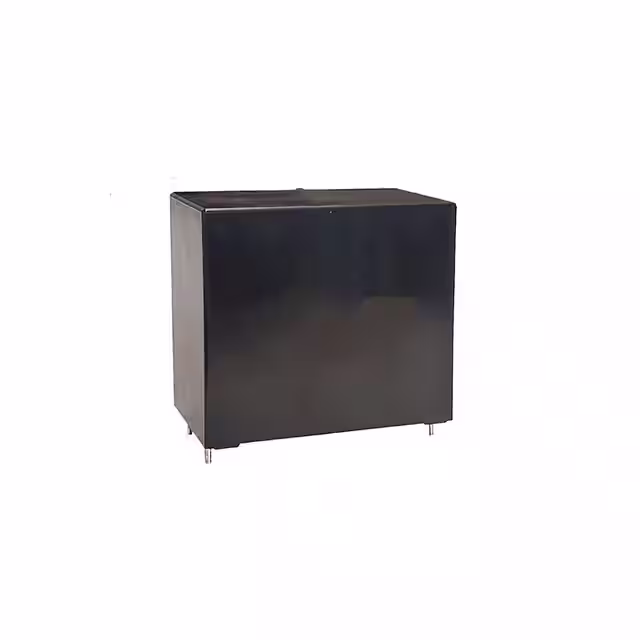

BLH606K601C084

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Termination Style :

Axial

Dielectric Material :

Polypropylene (PP), Metallized

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Number of Pins :

4 Pin

Operating Temperature :

-40°C ~ 105°C

Product Type :

Film Capacitors

Package / Case :

Radial - 4 Leads

Lead Style :

Straight

Package :

Bulk

Voltage Rating - AC :

-

Tolerance :

±10%

Applications :

Automotive; DC Link, DC Filtering

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Width :

50 mm

Height :

35 mm

Lead Diameter :

1.2 mm

Ratings :

AEC-Q200

ESR (Equivalent Series Resistance) :

5 MOhms

Height - Seated (Max) :

1.969" (50.00mm)

Termination :

PC Pins

Size / Dimension :

2.264" L x 1.378" W (57.50mm x 35.00mm)

Capacitance :

60 μF

Lead Spacing :

2.067" (52.50mm)

Subcategory :

Capacitors

Minimum Operating Temperature :

- 40 C

Mounting Type :

Through Hole

ESR :

5 MOhms

Series :

BLH

Product :

DC Link Film Capacitors

Length :

57.5 mm

Voltage Rating - DC :

600V
