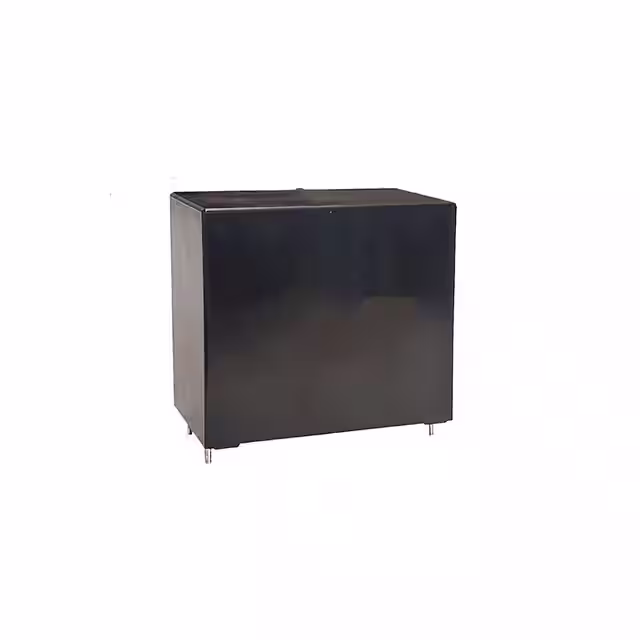

BLH656K801C114

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Height - Seated (Max) :

2.165" (55.00mm)

Height :

45 mm

Operating Temperature :

-40°C ~ 105°C

Product :

DC Link Film Capacitors

Ratings :

AEC-Q200

Subcategory :

Capacitors

Product Status :

Active

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Package / Case :

Radial - 4 Leads

ESR :

4 MOhms

Product Type :

Film Capacitors

Length :

57.5 mm

Package :

Bulk

Width :

55 mm

Voltage Rating - DC :

800V

Tolerance :

±10%

Applications :

Automotive; DC Link, DC Filtering

Capacitance :

65 μF

ESR (Equivalent Series Resistance) :

4 MOhms

Mounting Type :

Through Hole

Maximum Operating Temperature :

+ 105 C

Voltage Rating - AC :

-

Lead Style :

Straight

Dielectric Material :

Polypropylene (PP), Metallized

Termination Style :

Axial

Size / Dimension :

2.264" L x 1.772" W (57.50mm x 45.00mm)

Number of Pins :

4 Pin

Lead Diameter :

1.2 mm

Series :

BLH

Minimum Operating Temperature :

- 40 C

Termination :

PC Pins

Lead Spacing :

2.067" (52.50mm)
