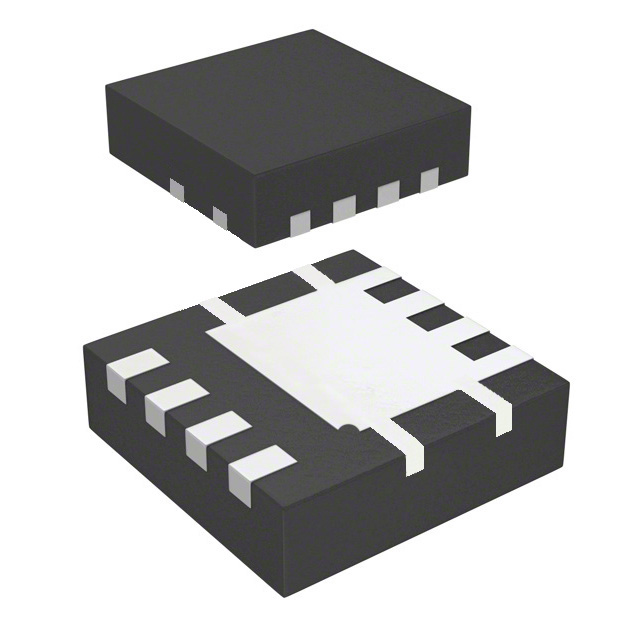

DMN2005UFGQ-13
Or copy the link below:
- Mfr.Part #
- DMN2005UFGQ-13
- Manufacturer
- Diodes Incorporated
- Package / Case
- 8-PowerVDFN
- Datasheet
- Download
- Description
- MOSFET N-CH 20V 18A PWRDI3333
- Stock
- 4,621
- In Stock ：
- 4,621
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diodes Incorporated
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Operating Temperature :
- -55°C~150°C TJ
- Vgs(th) (Max) @ Id :
- 1.2V @ 250µA
- Factory Lead Time :
- 23 Weeks
- Input Capacitance (Ciss) (Max) @ Vds :
- 6495pF @ 10V
- Rds On (Max) @ Id, Vgs :
- 4.6m Ω @ 13.5A, 4.5V
- Packaging :
- Tape and Reel (TR)
- Current - Continuous Drain (Id) @ 25°C :
- 18A Ta 50A Tc
- JESD-609 Code :
- e3
- Power Dissipation-Max :
- 1.05W Ta
- Drain to Source Voltage (Vdss) :
- 20V
- Vgs (Max) :
- ±12V
- Drive Voltage (Max Rds On,Min Rds On) :
- 2.5V 4.5V
- FET Type :
- N-Channel
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Package / Case :
- 8-PowerVDFN
- Terminal Finish :
- Matte Tin (Sn)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- RoHS Status :
- ROHS3 Compliant
- Gate Charge (Qg) (Max) @ Vgs :
- 164nC @ 10V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Automotive, AEC-Q101
- Mounting Type :
- Surface Mount
- Datasheets
- DMN2005UFGQ-13
N-Channel Tape & Reel (TR) 4.6m Ω @ 13.5A, 4.5V ±12V 6495pF @ 10V 164nC @ 10V 20V 8-PowerVDFN
DMN2005UFGQ-13 Overview
A device's maximum input capacitance is 6495pF @ 10V, but its input capacitance parameter, CI, is measured as the capacitance between the input terminals of the device with either input grounded.To operate this transistor, you need to apply a 20V drain to source voltage (Vdss).This device uses no drive voltage (2.5V 4.5V) to reduce its overall power consumption.
DMN2005UFGQ-13 Features
a 20V drain to source voltage (Vdss)
DMN2005UFGQ-13 Applications
There are a lot of Diodes Incorporated
DMN2005UFGQ-13 applications of single MOSFETs transistors.
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
- DC-to-DC converters
