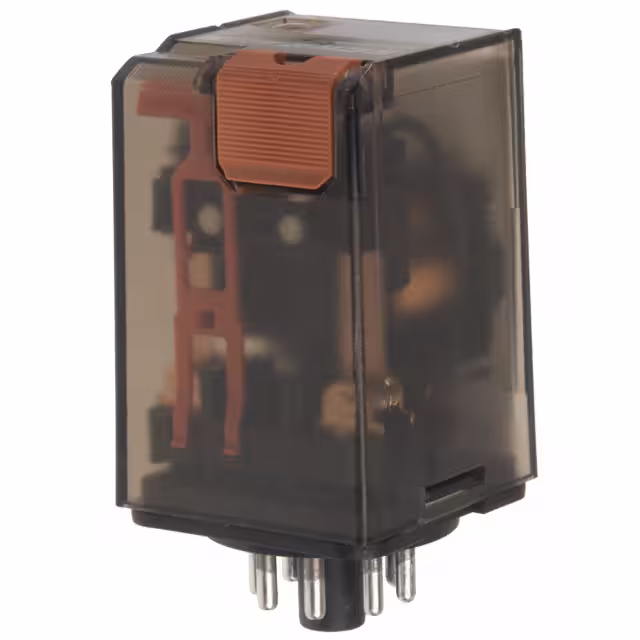

MT321012

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Contact Form :

3PDT (3 Form C)

Length :

35.6 mm

Coil Type :

Non Latching

Width :

35.5 mm

Seal Rating :

-

Power Consumption :

1.2 W

Relay Type :

GENERAL PURPOSE

Coil Release Voltage(DC) :

1.2 V

RoHS :

Details

Surface Mount :

No

Mounting Style :

Socket

Product Status :

Obsolete

Contact Current(AC)-Max :

10 A

Features :

Test Button

Body Height :

57 mm

Product Category :

General Purpose Relays

Relay Action :

Momentary

Body Length or Diameter :

35.5 mm

Dielectric Strength Between Coil and Contacts :

2500 Vrms

Contact/Output Supply Type :

AC

Package :

Tray

Additional Feature :

WITH TEST BUTTON

Coil Voltage :

12VDC

Series :

MT, SCHRACK

Coil Current(DC)-Max :

0.108 A

Switching Voltage :

400VAC - Max

Sealing :

RT1

ECCN Code :

EAR99

Coil Insulation :

-

End Contact Material :

Silver Nickel

Type :

Multimode

Coil/Input Supply Type :

DC

Height :

57 mm

Product Type :

General Purpose Relays

Contact Termination :

Plug In

Termination Type :

Snap-On

Electrical Life :

220000 Cycle(s)

Turn On Voltage (Max) :

9 VDC

Coil Power :

1.3 W

Contact Material :

Silver Nickel (AgNi)

Subcategory :

Relays

Coil Current :

109mA

Coil Resistance :

110 Ohms

Coil Voltage(DC)-Max :

12 V

Mounting Feature :

SOCKET MOUNT

Packaging :

Bulk

Release Time :

10ms

Contact Rating (Current) :

10A

Input Switching Control Type :

Random

Reference Standard :

UL; VDE

Mounting Type :

Socketable

Manufacturer :

TE Connectivity

Operating Temperature :

-40°C ~ 60°C

Reach Compliance Code :

Compliant

Packing Method :

Bulk

Weight :

80 g

Contact Voltage(AC)-Max :

400 V

Termination Style :

Plug In, 11 Pin (Octal)

Operate Time :

15ms

Physical Dimension :

35.5mm x 35.5mm x 57mm

Body Breadth :

35.5 mm

Must Release Voltage :

1.2 VDC

Relay Form :

3 Form C

Dielectric Strength Between Open Contacts :

1500 Vrms

Relay Function :

3PDT

Brand :

TE Connectivity / AMP

Turn Off Voltage (Min) :

1.2 VDC

Contact Current(DC)-Max :

10 A

Product :

Power Relays

Coil Operate Voltage(DC) :

9 V

Contact Current Rating :

10 A

Must Operate Voltage :

9 VDC
