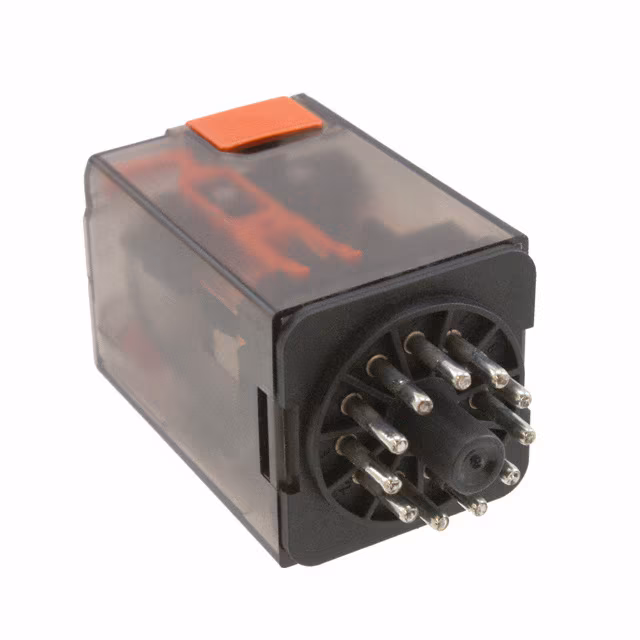

MT3230C4

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Power Relays, Over 2 Amps

Pin Count :

11

Relay Function :

3PDT

Electrical Life :

30000 Cycle(s)

Weight :

80 g

Relay Type :

POWER/SIGNAL RELAY

Features :

Diode, LED Indicator, Test Button

Coil Voltage DC :

24

Contact Voltage(AC)-Max :

400 V

Coil Voltage(DC)-Max :

24 V

Contact Rating (Current) :

10A

Seal Rating :

-

Mounting Style :

Plug-In

Contact Arrangement :

3PDT

Mounting Type :

Socketable

Contact/Output Supply Type :

AC

Input Switching Control Type :

Random

Package :

Tray

Voltage Rating (VAC) :

400(V)

Contact Form :

3PDT (3 Form C)

Coil Resistance :

475 Ω

Product Status :

Obsolete

Coil Suppression Diode :

No

Turn On Voltage (Max) :

18 VDC

Product Category :

General Purpose Relays

Base Product Number :

MT32

Coil Release Voltage(DC) :

2.4 V

Width :

35.5 mm

LED Indicator :

yes

ECCN Code :

EAR99

Packing Method :

Bulk

RoHS :

Details

Mounting Feature :

SOCKET MOUNT

Surface Mount :

No

Operating Temp Range :

-40C to 60C

Series :

MT, SCHRACK

Height :

57 mm

Termination Type :

Snap-On

Coil Current(DC)-Max :

0.05 A

Coil/Input Supply Type :

DC

Pick-up Voltage (Max) :

18VDC

Relay Form :

3 Form C

Maximum Power Rating :

2.5KVA

Power Consumption :

1.2 W

Relay Construction :

Non-Latching

Subcategory :

Relays

Switching Voltage :

400VAC - Max

Operating Temperature :

-40°C ~ 60°C

Operate Time :

16 ms

Rad Hardened :

No

Dropout Volt :

2.4VDC

Relay Action :

Momentary

Product Length (mm) :

35.5(mm)

Reach Compliance Code :

not_compliant

Additional Feature :

WITH TEST BUTTON AND LED

Type :

Multimode

Contact Current(AC)-Max :

10 A

Package / Case :

Dust Cover

Termination Style :

Plug In, 11 Pin (Octal)

Product Height (mm) :

57(mm)

Packaging :

Bulk

Dielectric Strength Between Open Contacts :

1500 Vrms

Physical Dimension :

35.5mm x 35.5mm x 57mm

Body Height :

57 mm

Contact Current(DC)-Max :

10 A

Coil Operate Voltage(DC) :

18 V

Dielectric Strength Between Coil and Contacts :

2500 Vrms

Must Release Voltage :

2.4 VDC

Coil Insulation :

-

Contact Material :

Silver Nickel (AgNi)

Sealing :

RT1

Product :

Power Relays

Contact Current Rating :

20(A)

End Contact Material :

Silver Nickel

Body Length or Diameter :

35.5 mm

Contact Termination :

Plug In

Length :

35.6 mm

Release Time :

9 ms

Must Operate Voltage :

18 VDC

Product Type :

General Purpose Relays

Turn Off Voltage (Min) :

2.4 VDC

Coil Current :

50.0mA

Coil Type :

Non Latching

Brand :

TE Connectivity / AMP

Coil Voltage :

24VDC

Coil Power :

1200 mW

Product Depth (mm) :

35.6(mm)

Seal :

Unsealed

Body Breadth :

35.5 mm

Reference Standard :

UL; VDE
