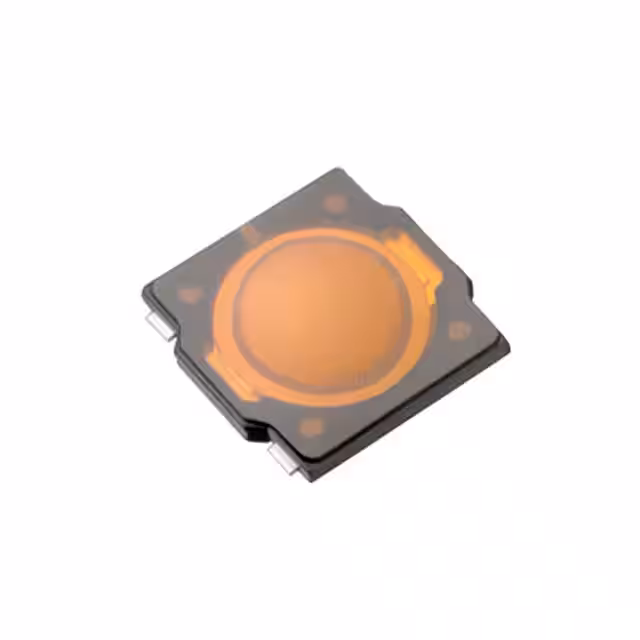

R-667834

Manufacturer :

NMB

Product Category :

Series :

SOG

Base Product Number :

SOG-152

Illumination Voltage (Nominal) :

-

Mechanical Life :

1,000,000 Cycles

Switch Function :

Off-Mom

Switch Travel :

-

Actuator Type :

Snap Dome

Actuator Height off PCB, Vertical :

0.40mm

Operating Temperature :

-

Actuator Material :

-

Contact Rating @ Voltage :

0.02A @ 15VDC

Operating Force :

163gf

Illumination Type, Color :

-

Termination Style :

SMD (SMT) Tab

Features :

-

Actuator Length, Right Angle :

-

Mounting Type :

Surface Mount

Actuator Orientation :

Top Actuated

Circuit :

SPST-NO

Product Status :

Obsolete

Illumination :

Non-Illuminated

Ingress Protection :

DUST PROOF

Outline :

3.70mm x 3.60mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
