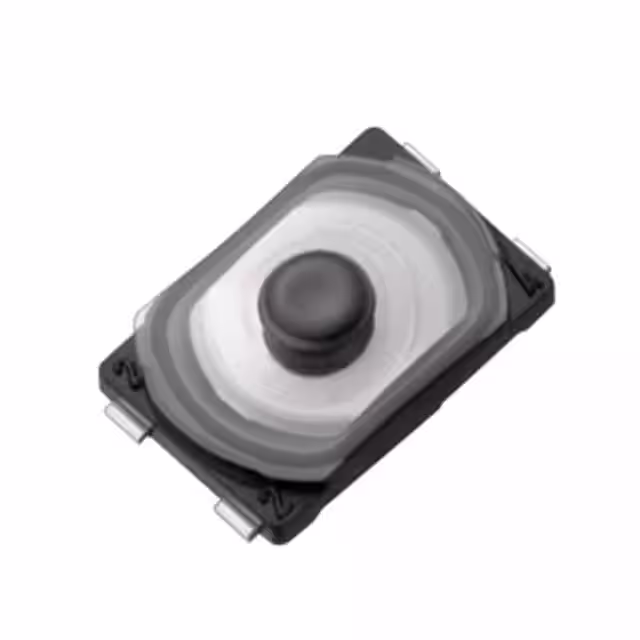

R-668127

Manufacturer :

NMB

Product Category :

Ingress Protection :

IP68 - Dust Tight, Waterproof

Switch Function :

Off-Mom

Operating Temperature :

-

Mounting Type :

Surface Mount

Base Product Number :

STU-057

Outline :

2.80mm x 1.90mm

Features :

-

Termination Style :

SMD (SMT) Tab

Illumination Voltage (Nominal) :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

STU

Mechanical Life :

500,000 Cycles

Actuator Type :

Standard

Actuator Material :

-

Actuator Orientation :

Top Actuated

Illumination Type, Color :

-

Actuator Height off PCB, Vertical :

0.57mm

Product Status :

Active

Actuator Length, Right Angle :

-

Contact Rating @ Voltage :

0.02A @ 15VDC

Switch Travel :

-

Operating Force :

229gf

Circuit :

SPST-NO

Illumination :

Non-Illuminated
