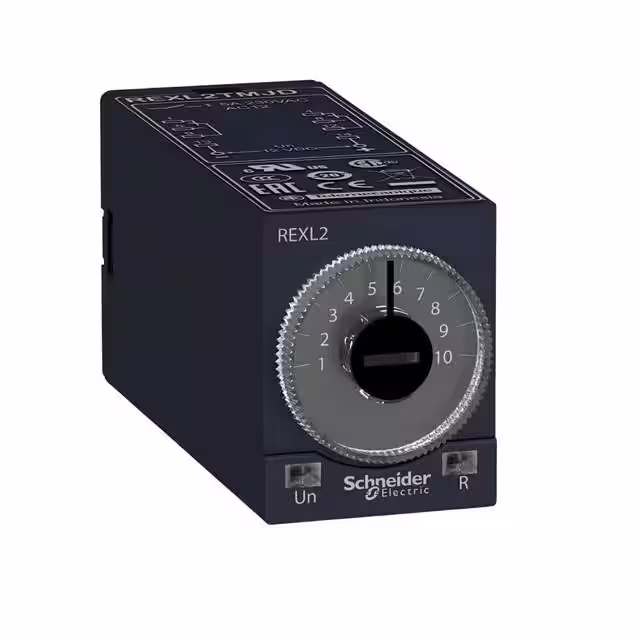

REXL2TMB7

Manufacturer :

Schneider Electric

Product Category :

Time Delay Relays

Circuit :

DPDT (2 Form C)

Contact Rating @ Voltage :

-

Series :

Harmony

Product Category :

Timers

Type of electric connection :

Plug-in connection

Brand :

Schneider Electric

Product Type :

Timers

Termination Style :

Plug In

Timing Initiate Method :

Input Voltage

Width :

21

Subcategory :

Timers

Rated control supply voltage at AC 60 Hz :

24 - 24

Height :

27

Function :

On-Delay

Time Delay :

0.1 → 1 h, 0.1 → 1 s, 0.1 → 10 min, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100h

Product Status :

Active

Delay Time :

0.1 Sec ~ 100 Hrs

RoHS :

Details

Nominal current :

5

Package :

Box

Mode of Operation :

Electromechanical

Mounting Type :

Socketable

Voltage type for actuating :

AC

Relay Type :

Mechanical Relay

Contact Material :

Silver Nickel

Switch Configuration :

DPDT

Depth :

63

Voltage - Supply :

24VAC

Rated control supply voltage at AC 50 Hz :

24 - 24

Rated control supply voltage at DC :

0 - 0

Timing Adjustment Method :

Hand Dial

Number of Contacts :

2

Maximum Operating Temperature :

+60°C

Supply Voltage :

24V ac

Manufacturer :

Schneider Electric

Minimum Operating Temperature :

-20°C
