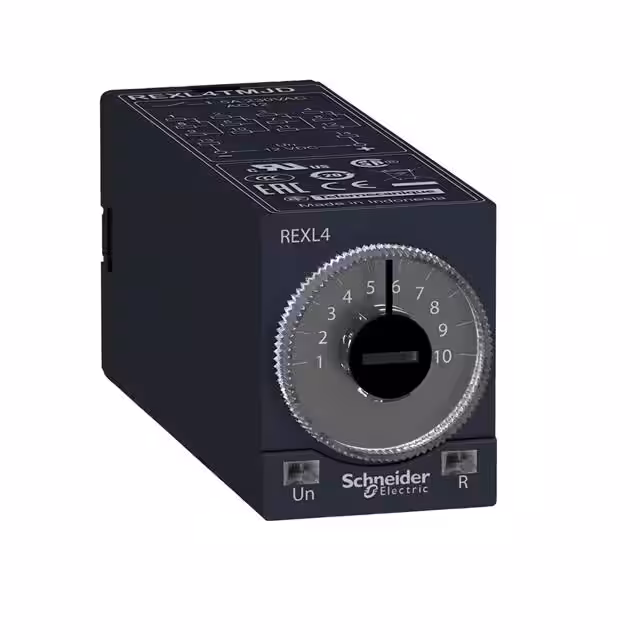

REXL4TMP7

Manufacturer :

Schneider Electric

Product Category :

Time Delay Relays

Switch Configuration :

SPST

Product Category :

Timers

Contact Material :

Silver Nickel

Product Type :

Timers

Mounting Type :

Socketable

Relay Type :

Mechanical Relay

Timing Adjustment Method :

Hand Dial

Minimum Operating Temperature :

-20°C

RoHS :

Details

Supply Voltage :

230V ac

Type of electric connection :

Plug-in connection

Number of Contacts :

4

Depth :

63

Rated control supply voltage at DC :

0 - 0

Voltage type for actuating :

AC

Brand :

Schneider Electric

Subcategory :

Timers

Maximum Operating Temperature :

+60°C

Circuit :

4PDT (4 Form C)

Contact Configuration :

4PDT

Series :

Harmony

Mode of Operation :

Electromechanical

Contact Rating @ Voltage :

-

Nominal current :

5

Time Delay :

0.1 → 1 h, 0.1 → 1 s, 0.1 → 10 min, 1 → 10 h, 1 → 10 min, 1 → 10 s, 10 → 100h

Voltage - Supply :

230VAC

Product Status :

Active

Termination Style :

Plug In

Width :

21

Length :

59.5mm

Terminal Type :

Screw

Height :

27

Timing Initiate Method :

Input Voltage

Manufacturer :

Schneider Electric

Rated control supply voltage at AC 60 Hz :

230 - 230

Function :

On-Delay

Rated control supply voltage at AC 50 Hz :

230 - 230

Package :

Box

Delay Time :

0.1 Sec ~ 100 Hrs
