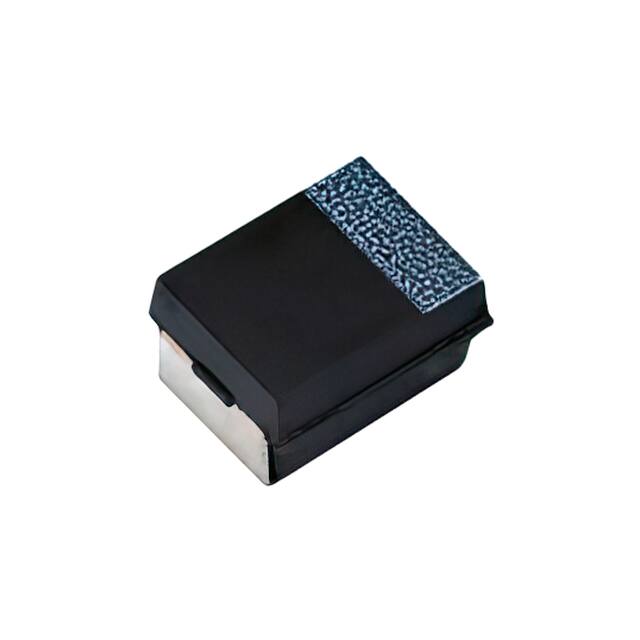

T51D106M035C0120

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Product Width :

4.3mm

Product Height :

2.8mm

Ratings :

AEC-Q200

Product Status :

Active

Length :

7.3 mm

Manufacturer Size Code :

D

Product Length :

7.3mm

Ripple Current :

1.36A

Minimum Operating Temperature :

- 55 C

Package / Case :

2917 (7343 Metric)

Height - Seated (Max) :

0.122 (3.10mm)

Technology :

Tantalum

Qualification :

AEC-Q200

Package/Case :

7343-31

Voltage :

35V DC

Voltage - Rated :

35 V

Tolerance :

20 %

Lead Spacing :

-

Capacitance :

10 uF

Features :

GENERAL PURPOSE

Mounting Type :

Surface Mount

Series :

T51

Operating Temperature :

-55°C ~ 125°C

Height :

2.8 mm

Product :

Tantalum Organic Polymer Low ESR

Tradename :

vPolyTan

Termination Style :

SMD/SMT

Type :

Molded

ESR (Equivalent Series Resistance) :

120mOhm @ 100kHz

Diameter :

-

Maximum Operating Temperature :

+ 125 C

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

RoHS :

Details

Packaging :

MouseReel

ESR :

120 Ohms

Capacitance Tolerance :

± 20%

Width :

4.3 mm

Lifetime @ Temp. :

1000 Hrs @ 125°C

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
