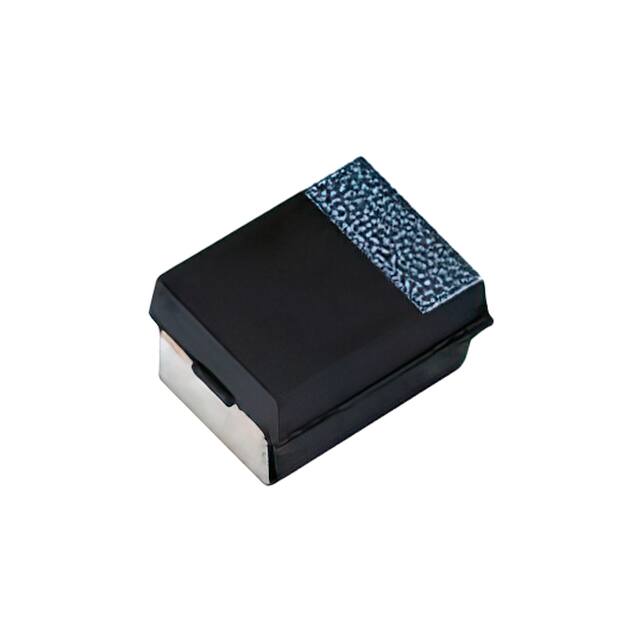

T51D685M035C0120

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Length :

7.3 mm

ESR :

120 Ohms

Features :

GENERAL PURPOSE

RoHS :

Details

Technology :

Tantalum

Tolerance :

20 %

Lifetime @ Temp. :

1000 Hrs @ 125°C

Minimum Operating Temperature :

- 55 C

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

ESR (Equivalent Series Resistance) :

120mOhm @ 100kHz

Diameter :

-

Package / Case :

2917 (7343 Metric)

Height :

2.8 mm

Ratings :

AEC-Q200

Voltage :

35V DC

Termination Style :

SMD/SMT

Product Height :

2.8mm

Capacitance Tolerance :

± 20%

Voltage - Rated :

35 V

Product :

Tantalum Organic Polymer Low ESR

Packaging :

MouseReel

Package/Case :

7343-31

Product Length :

7.3mm

Qualification :

AEC-Q200

Height - Seated (Max) :

0.122 (3.10mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Ripple Current :

1.36A

Type :

Molded

Mounting Type :

Surface Mount

Manufacturer Size Code :

D

Maximum Operating Temperature :

+ 125 C

Operating Temperature :

-55°C ~ 125°C

Product Status :

Active

Lead Spacing :

-

Capacitance :

6.8 uF

Series :

T51

Product Width :

4.3mm

Tradename :

vPolyTan

Width :

4.3 mm
