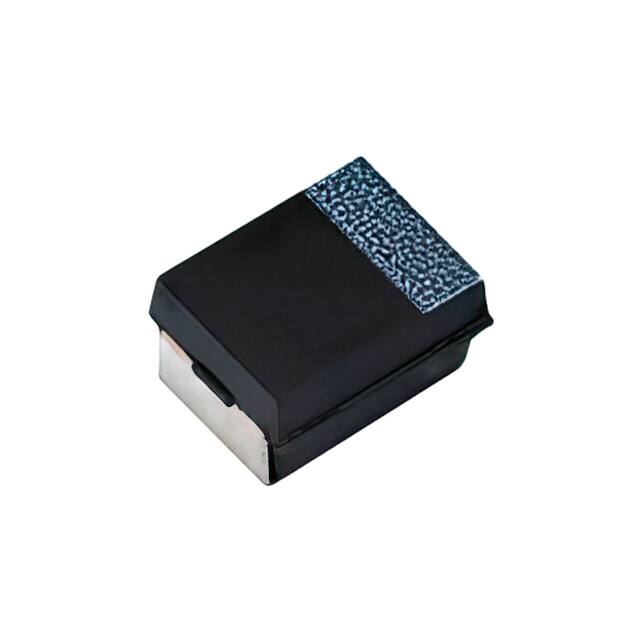

T51D336M020C0100

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Ripple Current :

1.5A

Capacitance :

33 uF

Height :

2.8 mm

Termination Style :

SMD/SMT

Packaging :

MouseReel

Voltage - Rated :

20 V

Diameter :

-

Qualification :

AEC-Q200

ESR (Equivalent Series Resistance) :

100mOhm @ 100kHz

RoHS :

Details

Tradename :

vPolyTan

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

Ratings :

AEC-Q200

Technology :

Tantalum

Maximum Operating Temperature :

+ 125 C

Package/Case :

7343-31

Length :

7.3 mm

Mounting Type :

Surface Mount

Width :

4.3 mm

Package / Case :

2917 (7343 Metric)

Features :

GENERAL PURPOSE

Product :

Tantalum Organic Polymer Low ESR

Operating Temperature :

-55°C ~ 125°C

Manufacturer Size Code :

D

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Height :

2.8mm

ESR :

100 Ohms

Lifetime @ Temp. :

1000 Hrs @ 125°C

Product Length :

7.3mm

Capacitance Tolerance :

± 20%

Height - Seated (Max) :

0.122 (3.10mm)

Product Width :

4.3mm

Product Status :

Active

Series :

T51

Voltage :

20V dc

Type :

Molded

Minimum Operating Temperature :

- 55 C

Lead Spacing :

-

Tolerance :

20 %
