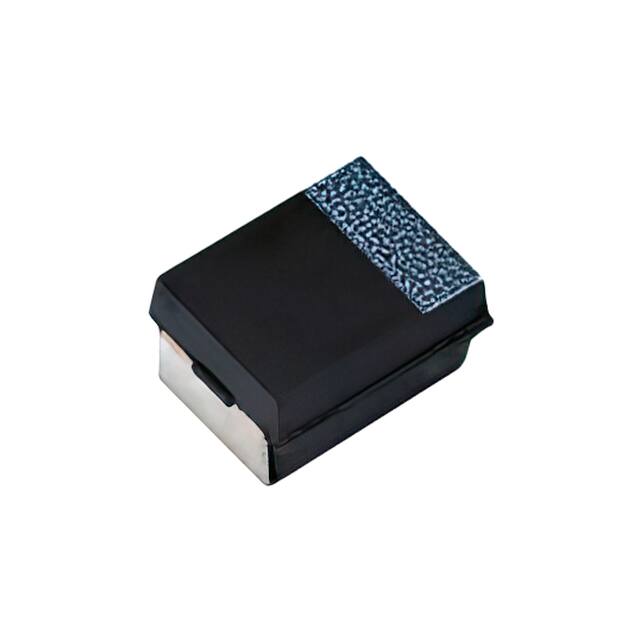

T51D336M025C0100

Manufacturer :

Vishay Polytech

Product Category :

Tantalum - Polymer Capacitors

Lead Spacing :

-

Capacitance Tolerance :

± 20%

Maximum Operating Temperature :

+ 125 C

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

Ripple Current :

1.5A

Lifetime @ Temp. :

1000 Hrs @ 125°C

Mounting Type :

Surface Mount

Packaging :

MouseReel

Ratings :

AEC-Q200

Manufacturer Size Code :

D

Product Width :

4.3mm

Features :

GENERAL PURPOSE

Diameter :

-

Qualification :

AEC-Q200

Capacitance :

33 uF

Package / Case :

2917 (7343 Metric)

Technology :

Tantalum

Operating Temperature :

-55°C ~ 125°C

Height - Seated (Max) :

0.122 (3.10mm)

Tolerance :

20 %

Product :

Tantalum Organic Polymer Low ESR

Tradename :

vPolyTan

ESR :

100 Ohms

Width :

4.3 mm

Minimum Operating Temperature :

- 55 C

Product Height :

2.8mm

Length :

7.3 mm

Voltage :

25V dc

Series :

T51

Product Status :

Active

ESR (Equivalent Series Resistance) :

100mOhm @ 100kHz

Package/Case :

7343-31

Type :

Molded

Voltage - Rated :

25 V

RoHS :

Details

Height :

2.8 mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Length :

7.3mm

Termination Style :

SMD/SMT
