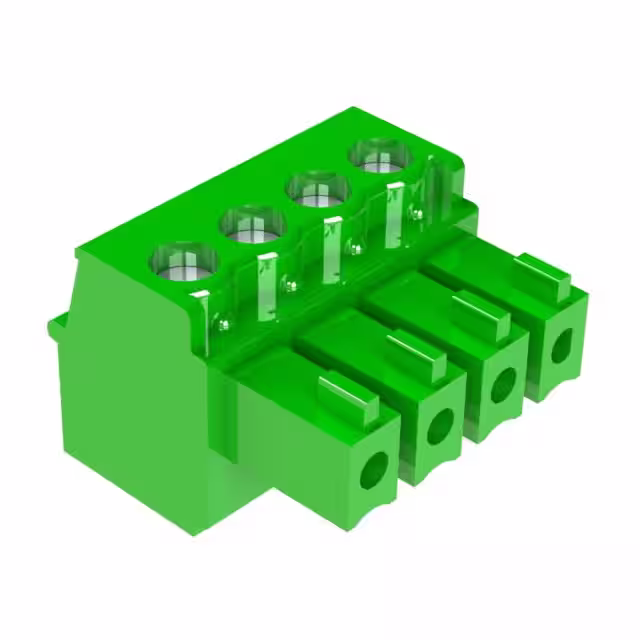

TBPS-00-150-09-GR-LF

Manufacturer :

Major League Electronics

Product Category :

Headers, Plugs and Sockets

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Material :

Phosphor Bronze

Operating Temperature :

-33°C ~ 105°C

Package :

Bag

Number of Positions :

9

Wire Strip Length :

6-8mm

Features :

-

Wire Gauge or Range - mm² :

-

Positions Per Level :

9

Series :

TBPS-00-150

Voltage - UL :

250 V

Insulation Height :

0.437 (11.10mm)

Torque - Screw :

-

Product Status :

Active

Contact Mating Finish :

Tin

Color :

Green

Ingress Protection :

-

Contact Tail Length :

-

Number of Levels :

1

Screw Size :

M2

Current - UL :

8 A

Pitch :

0.150 (3.81mm)

Wire Gauge or Range - AWG :

16-24 AWG

Material Flammability Rating :

UL94 V-0

Plug Wire Entry :

180°

Termination Style :

Screw - Rising Cage Clamp

Header Orientation :

-

Current - IEC :

-

Type :

Plug, Female Sockets
