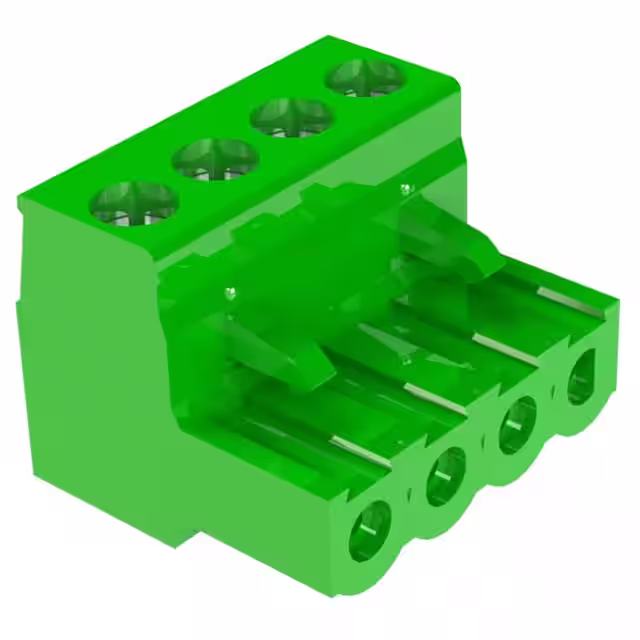

TBPS-00-200-16-GR-LF

Manufacturer :

Major League Electronics

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - AWG :

12-26 AWG

Contact Mating Finish :

Tin

Wire Gauge or Range - mm² :

-

Plug Wire Entry :

180°

Screw Size :

M3

Insulation Height :

0.590 (14.99mm)

Torque - Screw :

0.49 Nm (4.3 Lb-In)

Wire Strip Length :

4-6mm

Type :

Plug, Female Sockets

Number of Levels :

1

Voltage - UL :

250 V

Series :

TBPS-00-150

Header Orientation :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Pitch :

0.200 (5.08mm)

Termination Style :

Screw - Rising Cage Clamp

Features :

Retention Latches (Non-Wire Side)

Operating Temperature :

-33°C ~ 105°C

Contact Material :

Phosphor Bronze

Mounting Type :

Free Hanging (In-Line)

Current - UL :

10 A

Color :

Green

Contact Tail Length :

-

Product Status :

Active

Ingress Protection :

-

Positions Per Level :

16

Material Flammability Rating :

UL94 V-0

Current - IEC :

-

Package :

Bag

Number of Positions :

16
