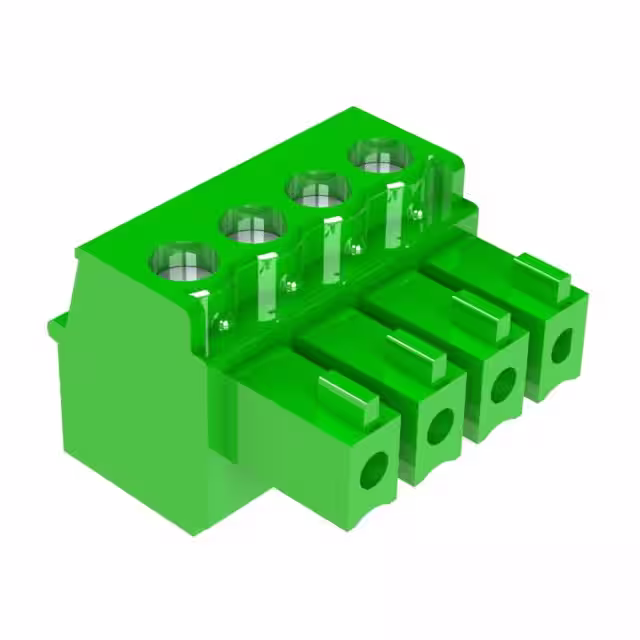

TBPS-00-150-16-GR-LF

Manufacturer :

Major League Electronics

Product Category :

Headers, Plugs and Sockets

Number of Positions :

16

Voltage - UL :

250 V

Current - IEC :

-

Torque - Screw :

-

Contact Mating Finish :

Tin

Material Flammability Rating :

UL94 V-0

Positions Per Level :

16

Series :

TBPS-00-150

Termination Style :

Screw - Rising Cage Clamp

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - AWG :

16-24 AWG

Screw Size :

M2

Header Orientation :

-

Insulation Height :

0.437 (11.10mm)

Operating Temperature :

-33°C ~ 105°C

Pitch :

0.150 (3.81mm)

Plug Wire Entry :

180°

Wire Strip Length :

6-8mm

Product Status :

Active

Ingress Protection :

-

Wire Gauge or Range - mm² :

-

Color :

Green

Contact Material :

Phosphor Bronze

Contact Tail Length :

-

Type :

Plug, Female Sockets

Package :

Bag

Number of Levels :

1

Current - UL :

8 A

Housing Material :

Polyamide (PA66), Nylon 6/6

Features :

-
