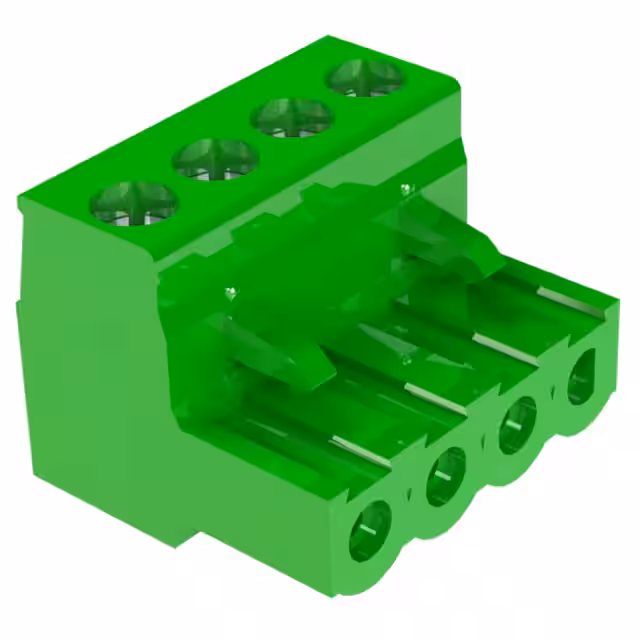

TBPS-00-200-13-GR-LF

Manufacturer :

Major League Electronics

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - AWG :

12-26 AWG

Current - IEC :

-

Mounting Type :

Free Hanging (In-Line)

Positions Per Level :

13

Voltage - UL :

250 V

Material Flammability Rating :

UL94 V-0

Current - UL :

10 A

Number of Positions :

13

Wire Gauge or Range - mm² :

-

Termination Style :

Screw - Rising Cage Clamp

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Mating Finish :

Tin

Screw Size :

M3

Wire Strip Length :

4-6mm

Contact Tail Length :

-

Operating Temperature :

-33°C ~ 105°C

Series :

TBPS-00-150

Pitch :

0.200 (5.08mm)

Contact Material :

Phosphor Bronze

Features :

Retention Latches (Non-Wire Side)

Package :

Bag

Number of Levels :

1

Color :

Green

Header Orientation :

-

Plug Wire Entry :

180°

Ingress Protection :

-

Product Status :

Active

Insulation Height :

0.590 (14.99mm)

Type :

Plug, Female Sockets

Torque - Screw :

0.49 Nm (4.3 Lb-In)
