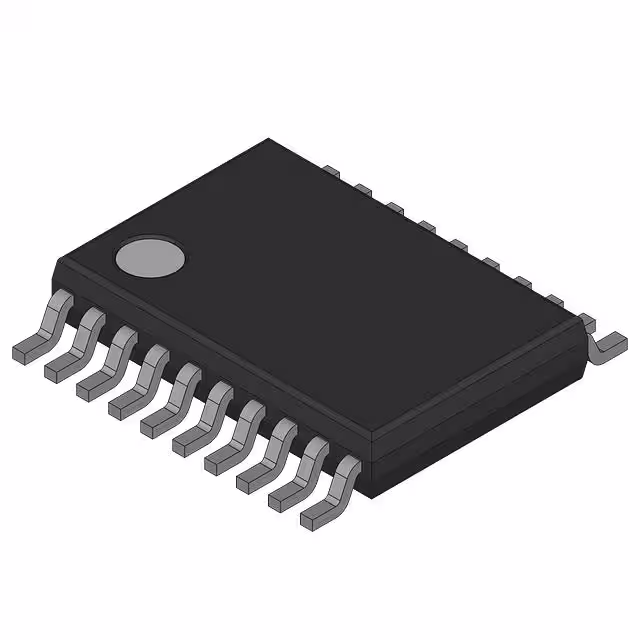

V62/03635-04XE

Manufacturer :

Texas Instruments

Product Category :

Voltage Regulators - Linear

Product Status :

Active

Accuracy :

2 %

Package :

Tape and Reel (TR)

Number of Functions :

1

REACH SVHC :

No SVHC

Nominal Output Voltage :

2.5V

Qualification Status :

Not Qualified

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Series :

*

Min Input Voltage :

2.7V

Voltage - Output :

2.5V

Quiescent Current :

70µA

Max Operating Temperature :

125°C

Terminal Form :

Gull wing

Max Input Voltage :

5.5V

Line Regulation-Max (%/V) :

0.00375%

Number of Outputs :

1

Length :

6.5mm

Number of Pins :

20

Height :

1.2mm

Dropout Voltage1-Nom :

0.21V

Current - Output :

2A

Output Type :

FIXED

Thickness :

1mm

Max Output Voltage :

2.5V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Terminal Pitch :

0.65mm

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Min Operating Temperature :

-40°C

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Lead Free :

Lead Free

Number of Terminations :

20

Pbfree Code :

yes

ECCN Code :

EAR99

JESD-609 Code :

e4

Peak Reflow Temperature (Cel) :

260

Width :

4.4mm

Dropout Voltage :

210mV

Min Output Voltage :

2.5V

Current - Input Bias :

75µA

Pin Count :

20

Packing Method :

TR

Surface Mount :

yes

Polarity :

Positive

Voltage Tolerance-Max :

2%

Terminal Position :

Dual

Output Voltage 1 :

2.5V

Max Output Current :

2A

Power Dissipation-Max :

7.2W
