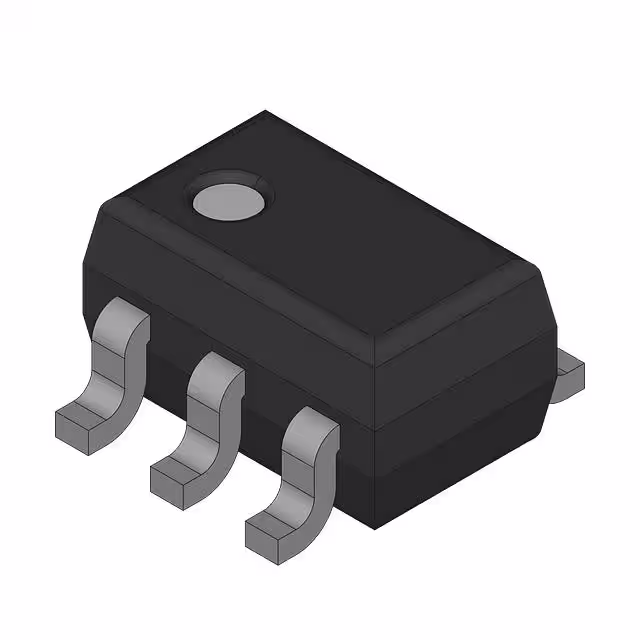

V62/04735-01XE

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Terminal Position :

Dual

Base Product Number :

V62/04735

JESD-609 Code :

e4

Number of Functions :

1

Control Type :

ENABLE LOW

Terminal Form :

Gull wing

Number of Terminals :

5

Manufacturer :

Texas

Factory Lead Time :

1 Week

Peak Reflow Temperature (Cel) :

260

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Power Supplies :

3.3 V

Surface Mount :

yes

Product Status :

Active

Seated Height-Max :

1.1 mm

Pbfree Code :

yes

Translation :

n/a

Package Shape :

RECTANGULAR

Logic IC Type :

BUS DRIVER

Schmitt Trigger :

No

Terminal Pitch :

0.65 mm

Output Characteristics :

3-STATE

Length :

2 mm

Family :

LVC/LCX/Z

Propagation Delay (tpd) :

9 ns

Brand Name :

Texas

JESD-30 Code :

R-PDSO-G5

Reach Compliance Code :

Compliant

Package :

Tape and Reel (TR)

Pin Count :

5

Width :

1.25 mm

Packing Method :

TR

Qualification Status :

Not Qualified

Power Supply Current-Max (ICC) :

0.01 mA

Temperature Grade :

Industrial

Number of Ports :

2

Output Polarity :

TRUE

Subcategory :

Gates

Series :

*

Number of Bits :

1

Count Direction :

Unidirectional

Supply Voltage-Max (Vsup) :

5.5 V

Max I(ol) :

0.032 A

Technology :

CMOS

Supply Voltage-Min (Vsup) :

1.65 V

HTS Code :

8542.39.00.01
