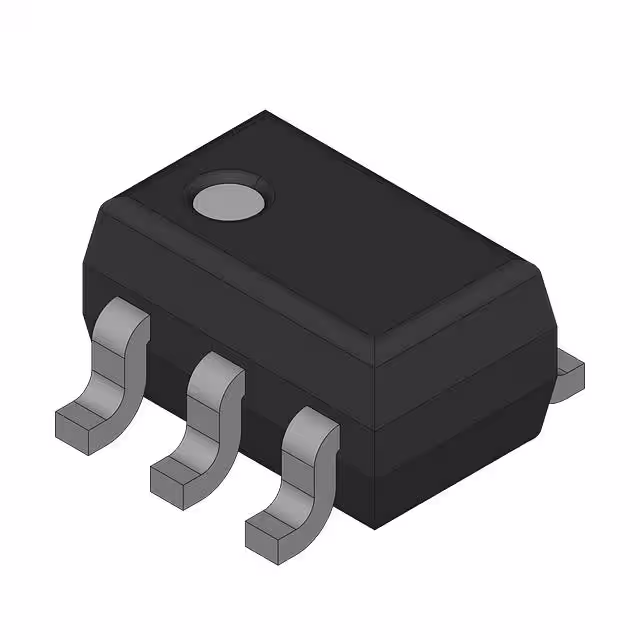

V62/04735-02XE

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Terminal Position :

Dual

Pbfree Code :

yes

Logic IC Type :

BUS DRIVER

Supply Voltage-Min (Vsup) :

1.65 V

Technology :

CMOS

Number of Terminals :

5

Translation :

n/a

Propagation Delay (tpd) :

4.9 ns

Seated Height-Max :

1.1 mm

Peak Reflow Temperature (Cel) :

260

Count Direction :

Unidirectional

Series :

*

Max I(ol) :

0.032 A

JESD-609 Code :

e4

Control Type :

ENABLE LOW

Manufacturer :

Texas

Base Product Number :

V62/04735

Package Shape :

RECTANGULAR

Schmitt Trigger :

No

ECCN Code :

EAR99

Supply Voltage-Max (Vsup) :

5.5 V

Packing Method :

TR

Power Supply Current-Max (ICC) :

0.01 mA

Package :

Tape and Reel (TR)

Number of Functions :

1

Surface Mount :

yes

Reach Compliance Code :

Compliant

Width :

1.25 mm

Family :

LVC/LCX/Z

Factory Lead Time :

1 Week

Temperature Grade :

Military

Terminal Pitch :

0.65 mm

Subcategory :

Gates

Power Supplies :

3.3 V

Length :

2 mm

HTS Code :

8542.39.00.01

Number of Ports :

2

Brand Name :

Texas

Number of Bits :

1

Output Characteristics :

3-STATE

JESD-30 Code :

R-PDSO-G5

Pin Count :

5

Product Status :

Active

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Qualification Status :

Not Qualified

Terminal Form :

Gull wing

Output Polarity :

TRUE
