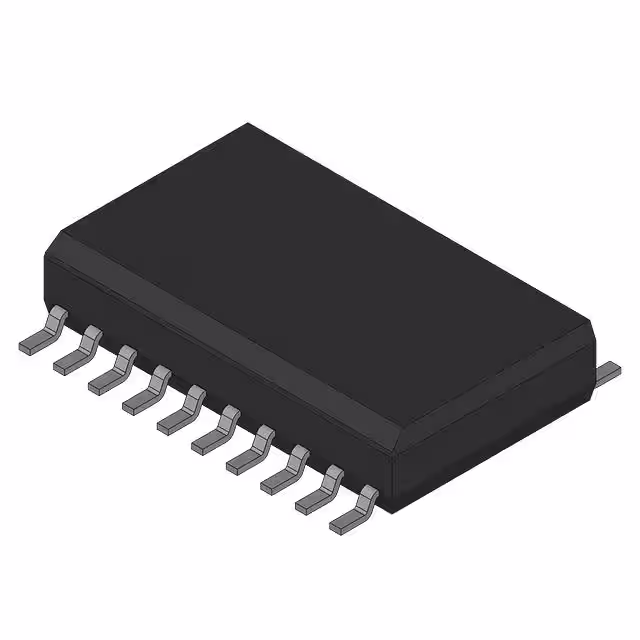

V62/04620-01XE

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Control Type :

ENABLE LOW

HTS Code :

8542.39.00.01

Translation :

n/a

Power Supply Current-Max (ICC) :

0.08 mA

Package / Case :

20-SOIC (0.295, 7.50mm Width)

Manufacturer :

Texas

Base Product Number :

V62/04620

JESD-30 Code :

R-PDSO-G20

Output Polarity :

TRUE

Operating Temperature :

-55°C ~ 125°C (TA)

Family :

ACT

Width :

7.5 mm

Number of Bits per Element :

4

Terminal Position :

Dual

Count Direction :

Unidirectional

Output Type :

3-STATE

Number of Ports :

2

Subcategory :

Bus Driver/Transceivers

Peak Reflow Temperature (Cel) :

260

Number of Elements :

2

Technology :

CMOS

Voltage - Supply :

4.5V ~ 5.5V

Supply Voltage-Min (Vsup) :

4.5 V

Reach Compliance Code :

Compliant

ECCN Code :

EAR99

Number of Functions :

2

Terminal Pitch :

1.27 mm

Propagation Delay (tpd) :

10 ns

Terminal Form :

Gull wing

Seated Height-Max :

2.65 mm

Output Characteristics :

3-STATE

Factory Lead Time :

1 Week

Max I(ol) :

0.024 A

Supply Voltage-Max (Vsup) :

5.5 V

Length :

12.8 mm

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Pin Count :

20

Qualification Status :

Not Qualified

Series :

*

Power Supplies :

5 V

Mounting Type :

Surface Mount

JESD-609 Code :

e4

Package :

Tape and Reel (TR)

Current - Output High, Low :

24mA, 24mA

Product Status :

Active

Package Shape :

RECTANGULAR

Number of Terminals :

20

Pbfree Code :

yes

Logic Type :

Buffer, Non-Inverting

Brand Name :

Texas

Logic IC Type :

BUS DRIVER

Supplier Device Package :

20-SOIC

Packing Method :

TR

Temperature Grade :

Military

Number of Bits :

4

Surface Mount :

yes
