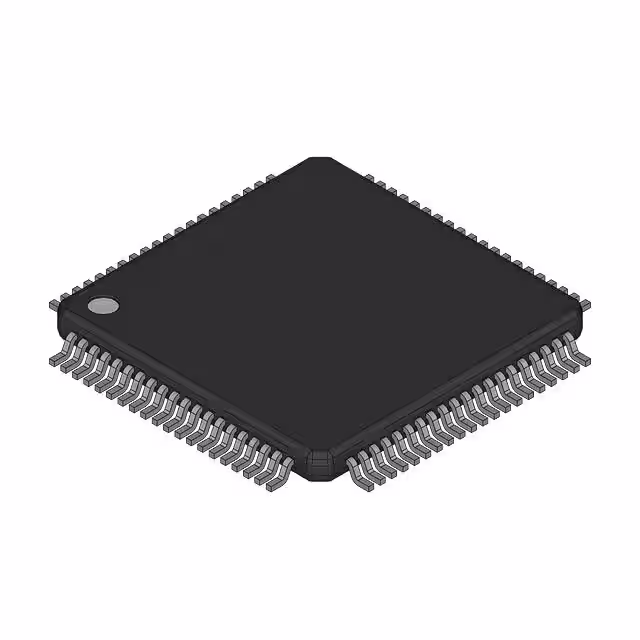

V62/06668-01XE

Manufacturer :

Texas Instruments

Product Category :

Analog to Digital Converters (ADC)

Sampling Rate :

250 Msps

Sample and Hold / Track and Hold :

TRACK

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Output Bit Code :

OFFSET BINARY

Pin Count :

80

Peak Reflow Temperature (Cel) :

260

RoHS Status :

RoHS Compliant

Spurious-free dynamic range (SFDR) :

85 dB

Thickness :

1mm

Polarity :

Bipolar

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Linearity Error-Max (EL) :

0.0525%

Max Supply Voltage (DC) :

3.6V

Signal to Noise Ratio (SNR) :

69.3 dB

Max Operating Temperature :

125°C

Power Dissipation :

2.37W

Power Consumption :

2.25W

Min Supply Voltage :

4.75V

Surface Mount :

yes

Min Operating Temperature :

-55°C

Min Supply Voltage (DC) :

3V

Terminal Pitch :

0.5mm

Number of Pins :

80

Width :

12mm

Resolution :

1.625 B

Analog Input Voltage-Max :

2.2V

Interface :

LVDS, Parallel

Converter Type :

ADC, PROPRIETARY METHOD

Terminal Position :

QUAD

Supply Voltage :

5V

Power Dissipation-Max :

2.37W

Number of Elements :

1

Number of Bits :

13

Integral Nonlinearity (INL) :

2.2 LSB

Max Supply Voltage :

5.25V

Conversion Rate :

250 Msps

Terminal Form :

Gull wing

Length :

12mm

Analog Input Voltage-Min :

-2.2V

Qualification Status :

Not Qualified

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

JESD-609 Code :

e4

Operating Supply Voltage :

5V

Number of Analog In Channels :

1

Supply Current-Max :

430mA

Output Format :

PARALLEL, WORD

Lead Free :

Lead Free

Height :

1.2mm

Pbfree Code :

yes

Number of Functions :

1

Number of Terminations :

80

Temperature Grade :

Military
