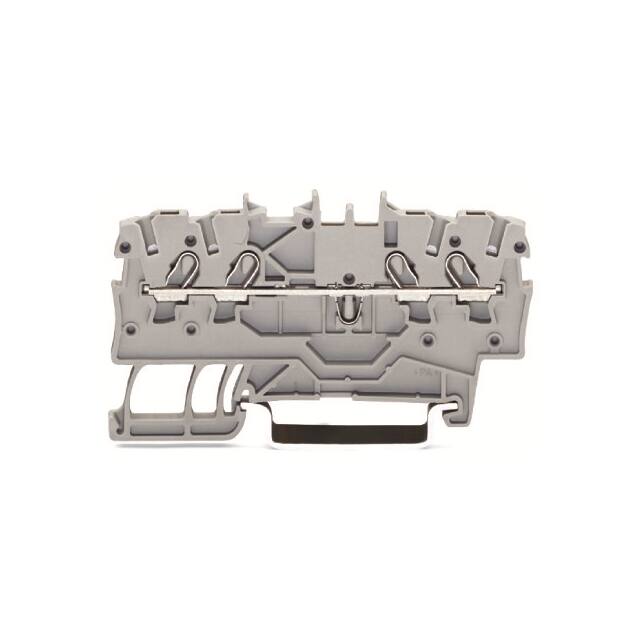

2000-1404

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Series :

2000

Voltage - UL :

600V

Package :

Box

Housing Color :

Blue

Cross section (inflexible) (max.) :

1.50mm²

Nominal current (details) :

13.5 A (18 A with flexible ladders)

Number of Contacts :

4(POS)

No. of rows :

1

Current Rating :

13.5 → 18A

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyamide 6/6

Pins per row :

4

Cross section (flexible) (min.) :

0.14mm²

Contact Pitch (mm) :

Not Required(mm)

Wire Gauge or Range - mm² :

0.14-1.5mm²

Features :

-

AWG max. :

16

Product Depth (mm) :

3.5(mm)

RoHS :

yes

Content :

1pc(s)

Color :

Blue

Connection :

-

Voltage Rating :

800 V

Wire Gauge :

16-24(AWG)

Product Status :

Active

Clamp width :

3.50mm

Termination Method :

Clamp

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage - IEC :

800V

Number of Contact Rows :

4

Nominal current :

13.5A

Stripping Length :

9mm ~ 11mm

Manufacturer part # :

2000-1404

Product Length (mm) :

67.9(mm)

Number of Levels :

1

Fuse Type :

-

Number of Positions :

4

Mounting Type :

DIN Rail

Rad Hardened :

No

Pitch :

3.5mm

Configuration :

N

Operating Voltage (Max) :

600V

Manufacturer :

Wago

Cross section (flexible) (max.) :

1.50mm²

Disconnect Type :

-

Min. stripping length :

10mm

Rated Current :

18A

Nominal current - rounded value :

13.5A

Current Rating (Max) :

15(A)

Terminal - Width :

3.5mm

Type :

Standard Block

Number of Circuits :

1

Nominal voltage :

800V

Mounting Style :

T DIN RAIL

Rated Voltage :

800V

Product Height (mm) :

33(mm)

Width :

3.50mm

Packaging :

Box

Stripping length (max.) :

12mm

Current - IEC :

17.5 A

Current - UL :

15 A

Wire Gauge or Range - AWG :

16-24 AWG

Termination Style :

Push In, Spring

Cross section (inflexible) (min.) :

0.14mm²

AWG (min.) :

24
