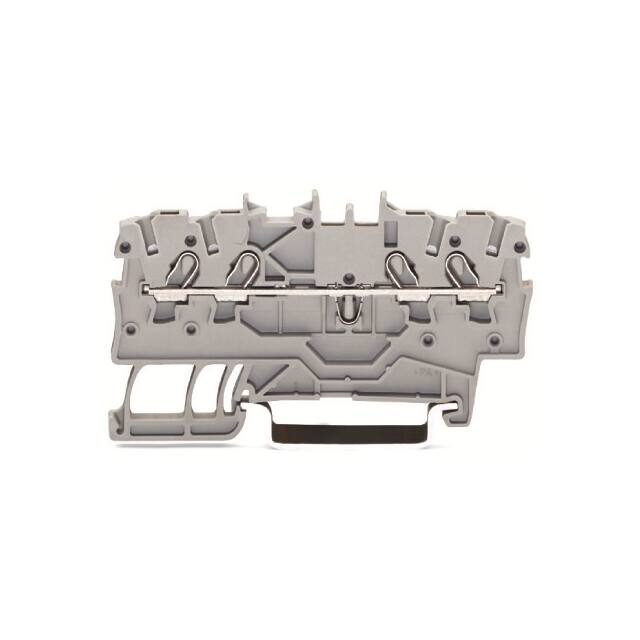

2000-1405

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Contact Rows :

4

Number of Contacts :

4

Number of Rows :

4

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Termination Method :

Spring Clamp

Rad Hardened :

No

Disconnect Type :

-

Voltage - IEC :

800V

Number of Positions :

4

Package :

Box

Number of Circuits :

1

PPAP :

No

Operating Voltage (Max) :

600V

Mounting :

DIN Rail

Packaging :

Box

Terminal - Width :

3.5mm

Product Length (mm) :

3.5

Connectable conductor cross section multi-wired :

0.14 - 1

Series :

TOPJOB®S

Maximum Operating Temperature (°C) :

105

Maximum Voltage Rating :

600V

Product Status :

Active

Product Depth (mm) :

67.9

Mounting Style :

Din-Rail

Stripping Length :

9mm ~ 11mm

Rated current In :

13.5

Current Rating (Max) :

10(A)

Housing Color :

Black

EU RoHS :

Compliant

Color :

Black

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Number of Levels :

1

Maximum Current Rating (A) :

10

Wire Gauge or Range - AWG :

16-24 AWG

Length :

67.9

HTS :

8536.90.40.00

Wire Gauge :

16-24(AWG)

Depth :

32.9

Housing Material :

Polyamide 6/6

Voltage - UL :

-

Termination Style :

Push In, Spring

Height :

67.9

Manufacturer :

Wago

Width :

3.5

Mounting Type :

DIN Rail

Connectable conductor cross section solid-core :

0.5 - 1.5

Current - IEC :

17.5 A

Fuse Type :

-

Automotive :

No

Type :

Feed-Through Terminal Block

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Product Height (mm) :

32.9

Inflammability class of insulation material according to with UL94 :

V0

Material Flammability Rating :

UL94 V-0

ECCN (US) :

EAR99

Wire Gauge or Range - mm² :

0.14-1.5mm²

RoHS :

yes

Features :

-

Minimum Operating Temperature (°C) :

-60
