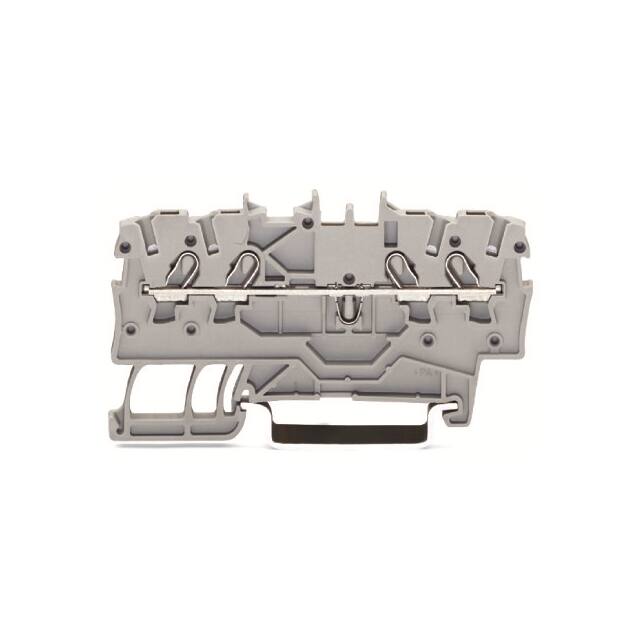

2000-1406

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Rows :

4

Fuse Type :

-

Features :

-

Product Status :

Active

Housing Material :

Polyamide 6/6

Product Depth (mm) :

67.9

Number of Positions :

4

Product Length (mm) :

3.5

Termination Method :

Spring Clamp

Number of Contacts :

4

Current Rating (Max) :

15(A)

Packaging :

Box

Terminal - Width :

3.5mm

Stripping Length :

9mm ~ 11mm

Number of Circuits :

1

Housing Color :

Yellow

Color :

Yellow

Type :

Feed-Through Terminal Block

Product Height (mm) :

32.9

Mounting Type :

DIN Rail

Number of Contact Rows :

4

Maximum Voltage Rating :

600V

Wire Gauge or Range - AWG :

16-24 AWG

Series :

TOPJOB®S

Voltage - IEC :

800V

Disconnect Type :

-

Wire Gauge :

16-24(AWG)

Termination Style :

Push In, Spring

Automotive :

No

HTS :

8536.69.40.51

Wire Gauge or Range - mm² :

0.14-1.5mm²

Operating Voltage (Max) :

600V

Voltage - UL :

600V

ECCN (US) :

EAR99

Current - UL :

15 A

PPAP :

No

Minimum Operating Temperature (°C) :

-60

Package :

Box

RoHS :

yes

Number of Levels :

1

Maximum Current Rating (A) :

15

Manufacturer :

Wago

EU RoHS :

Compliant

Mounting :

DIN Rail

Current - IEC :

17.5 A

Rad Hardened :

No

Mounting Style :

Din-Rail

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-0

Maximum Operating Temperature (°C) :

105
