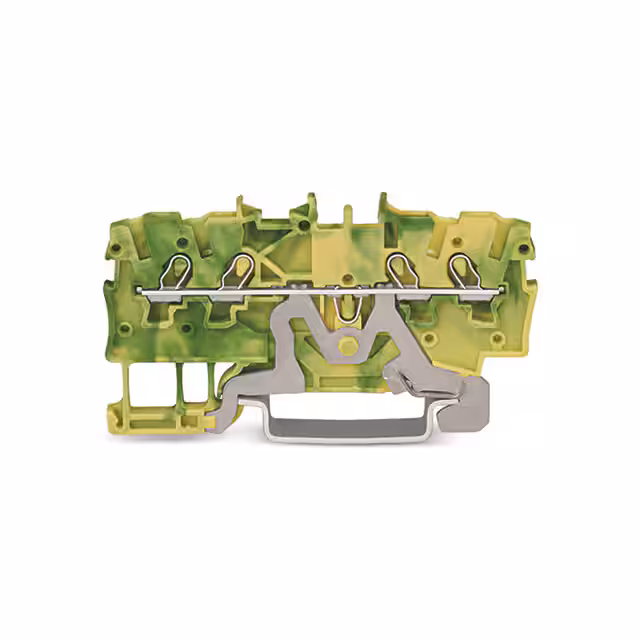

2000-1407

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

No. of rows :

1

Stripping Length :

9mm ~ 11mm

Packaging :

Box

Number of Contact Rows :

4

Cross section (flexible) (min.) :

0.14mm²

Type :

Grounding Block

Configuration :

Terre

Width :

3.50mm

Package :

Box

Pins per row :

4

Number of Positions :

4

Cross section (flexible) (max.) :

1.50mm²

Product Height (mm) :

32.9(mm)

Features :

-

Voltage - UL :

-

Stripping length (max.) :

12mm

Disconnect Type :

-

Color :

Green-Yellow

Mounting Style :

T DIN RAIL

Number of Contacts :

4(POS)

Series :

2000

Clamp width :

3.50mm

Wire Gauge or Range - mm² :

0.14-1.5mm²

Connection :

-

Wire Gauge or Range - AWG :

16-24 AWG

Wire Gauge :

16-24(AWG)

Product Status :

Active

Nominal current - rounded value :

13.5A

Number of Circuits :

1

Fuse Type :

-

Cross section (inflexible) (min.) :

0.14mm²

Housing Color :

Green/yellow

Termination Style :

Push In, Spring

Material Flammability Rating :

UL94 V-0

Rad Hardened :

No

Housing Material :

Polyamide 6/6

Manufacturer :

Wago

AWG (min.) :

24

Product Depth (mm) :

67.9(mm)

Termination Method :

Spring Clamp

Nominal current :

13.5A

Product Length (mm) :

3.5(mm)

RoHS :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Cross section (inflexible) (max.) :

1.50mm²

Mounting Type :

DIN Rail

Min. stripping length :

10mm

Voltage - IEC :

-

Manufacturer part # :

2000-1407

AWG max. :

16

Pitch :

3.5mm

Number of Levels :

1

Terminal - Width :

3.5mm

Content :

1pc(s)

Nominal current (details) :

13.5 A (18 A with flexible ladders)
