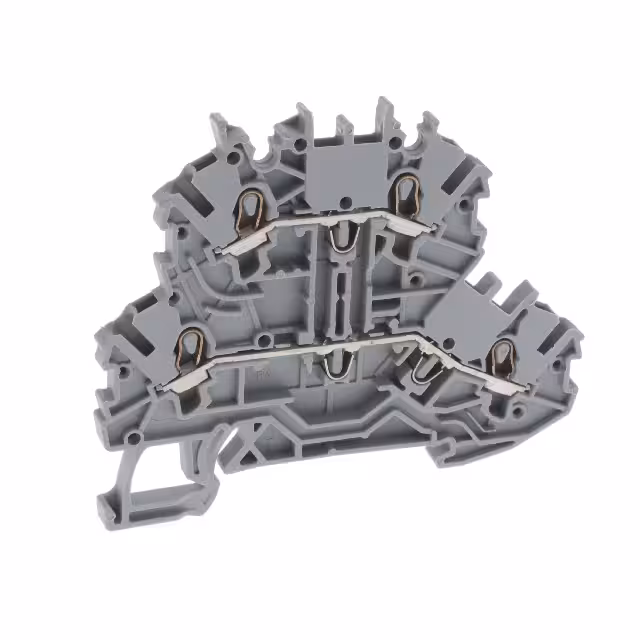

2000-2201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current - UL :

15 A

Pins per row :

2

Number of Rows :

1

Housing Color :

Gray

Termination Method :

Push-In Cage Clamp

Series :

2000

Connectable conductor cross section multi-wired :

0.14 - 1

Package :

Bulk

Connection :

Pull spring

Nominal current - rounded value :

13.5A

Termination Style :

Push In, Spring

Maximum Voltage Rating :

500V

Min. stripping length :

9mm

Terminal - Width :

3.5mm

Automotive :

No

Mounting Type :

DIN Rail

RoHS :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Cross section (inflexible) (min.) :

0.14mm²

Number of Levels :

2

Color :

Gray

Inflammability class of insulation material according to with UL94 :

V0

ECCN (US) :

EAR99

PPAP :

No

Product Status :

Active

AWG (min.) :

24

Current - IEC :

16 A

Cross section (flexible) (max.) :

1.50mm²

Stripping length (max.) :

11mm

Stripping Length :

9mm ~ 11mm

Mounting :

DIN Rail

Maximum Current Rating (A) :

13.5

Height :

69.7

Manufacturer :

Wago

Wire Gauge or Range - mm² :

0.5-1.5mm²

Rated current In :

13.5

Packaging :

Box

Depth :

51.7

Number of Contacts :

4

Content :

1pc(s)

Nominal current :

13.5A

Cross section (flexible) (min.) :

0.14mm²

Disconnect Type :

-

HTS :

8536.90.40.00

Material Flammability Rating :

-

Features :

-

Voltage - UL :

300V

Fuse Type :

-

Connectable conductor cross section solid-core :

0.5 - 1.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Rated Voltage :

500V

Minimum Operating Temperature (°C) :

-60

Length :

70

Number of Circuits :

4

Nominal voltage (details) :

500V

Maximum Operating Temperature (°C) :

105

Number of Positions :

4

Configuration :

L,L

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Base Product Number :

2000-220

Nominal voltage :

500V

Approvals :

CSA, cURus

Manufacturer part # :

2000-2201

Wire Gauge or Range - AWG :

16-20 AWG

Cross section (inflexible) (max.) :

1mm²

Clamp width :

3.50mm

Type :

Terminal Block

EU RoHS :

Compliant

Product Length (mm) :

69.7

Voltage - IEC :

500V

Rated Current :

13.5A

AWG max. :

16

Nominal current (details) :

13.5A

Width :

3.50mm

No. of rows :

2
