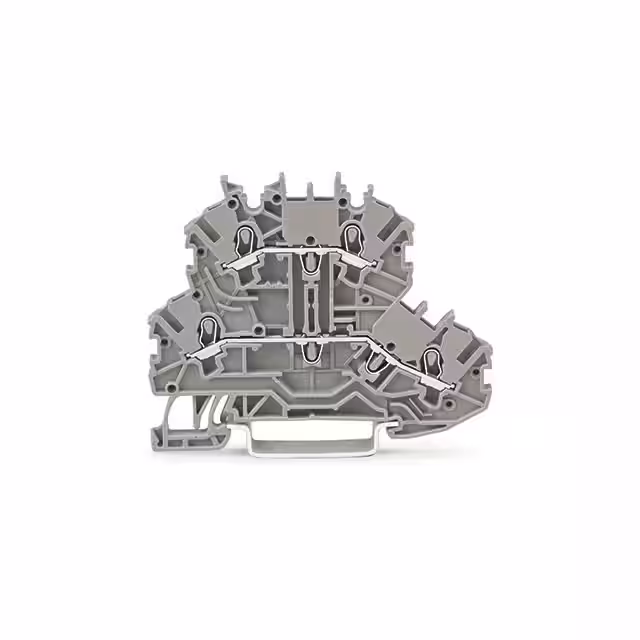

2000-2203

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Type :

Double-Deck Block

Inflammability class of insulation material according to with UL94 :

V0

Number of Positions :

4

Current - UL :

15 A

Height :

69.7

Width :

3.5

Series :

TOPJOB®S

Product Status :

Active

PPAP :

No

Disconnect Type :

-

Terminal - Width :

3.5mm

EU RoHS :

Compliant

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Package :

Box

Connectable conductor cross section multi-wired :

0.14 - 1

Length :

70

Depth :

51.7

Material Flammability Rating :

UL94 V-0

Voltage - IEC :

500V

Connectable conductor cross section solid-core :

0.5 - 1.5

Wire Gauge or Range - mm² :

0.14-1.5mm²

Mounting Type :

DIN Rail

Rated current In :

13.5

Number of Levels :

2

Color :

Gray

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Features :

-

Manufacturer :

Wago

Termination Style :

Push In, Spring

ECCN (US) :

EAR99

HTS :

8536.90.40.00

Voltage - UL :

300V

Approvals :

cURus;CSA

Number of Circuits :

2

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Automotive :

No

RoHS :

yes

Stripping Length :

9mm ~ 11mm

Current - IEC :

16 A

Fuse Type :

-

Wire Gauge or Range - AWG :

16-24 AWG
