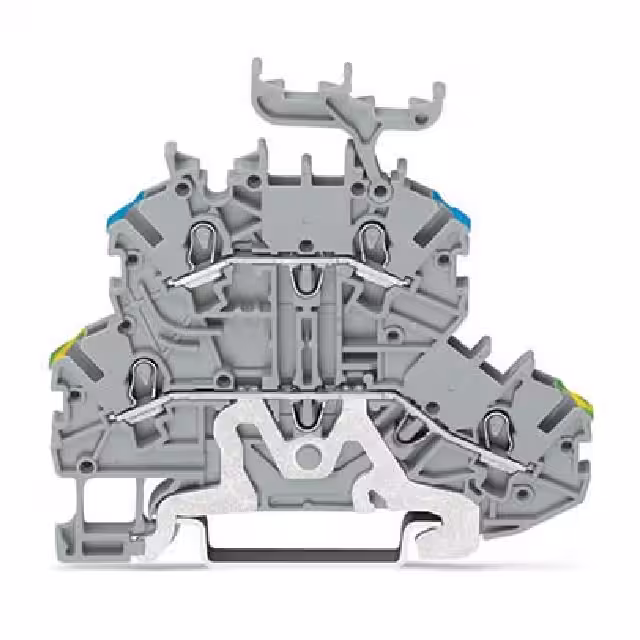

2000-2227

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current - UL :

15 A

Manufacturer :

Wago

Inflammability class of insulation material according to with UL94 :

V0

Product Status :

Active

Type :

Double-Deck Block

Material Flammability Rating :

UL94 V-0

Depth :

51.7

Wire Gauge or Range - mm² :

0.14-1.5mm²

Voltage - UL :

300V

Height :

69.7

Voltage - IEC :

500V

Connectable conductor cross section solid-core :

0.5 - 1.5

Connectable conductor cross section multi-wired :

0.14 - 1

Series :

2000

Approvals :

UL;CSA

Disconnect Type :

-

Number of Levels :

2

Termination Style :

Push In, Spring

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Color :

Gray

Package :

Box

Fuse Type :

-

Length :

70

Wire Gauge or Range - AWG :

16-24 AWG

Current - IEC :

16 A

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Terminal - Width :

3.5mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Features :

-

RoHS :

No

Number of Positions :

4

Stripping Length :

9mm ~ 11mm

Mounting Type :

DIN Rail

Width :

3.5

Termination Method :

Push-In Cage Clamp
