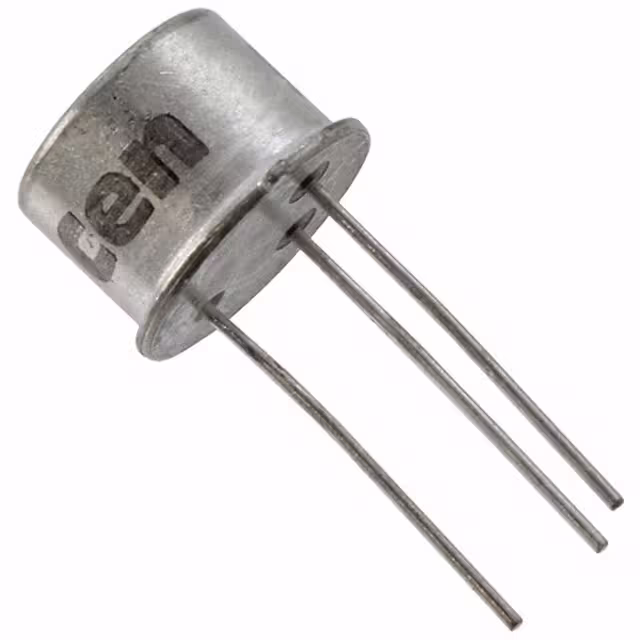

2N2218 PBFREE
Or copy the link below:
- Mfr.Part #
- 2N2218 PBFREE
- Manufacturer
- Central Semiconductor
- Package / Case
- TO-205AD, TO-39-3 Metal Can
- Datasheet
- Download
- Description
- TRANS NPN 30V 0.8A TO39
- Stock
- 9,804
- In Stock ：
- 9,804
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Central Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Packaging :
- Bulk
- Frequency - Transition :
- 250MHz
- Voltage - Collector Emitter Breakdown (Max) :
- 30V
- Package / Case :
- TO-205AD, TO-39-3 Metal Can
- Operating Temperature :
- -65°C~200°C TJ
- Terminal Finish :
- MATTE TIN OVER NICKEL
- JESD-609 Code :
- e3
- Current - Collector (Ic) (Max) :
- 800mA
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Vce Saturation (Max) @ Ib, Ic :
- 1V @ 50mA, 500mA
- RoHS Status :
- ROHS3 Compliant
- Transistor Type :
- NPN
- Power - Max :
- 3W
- Factory Lead Time :
- 20 Weeks
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 40 @ 150mA 10V
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Current - Collector Cutoff (Max) :
- 10nA ICBO
- Datasheets
- 2N2218 PBFREE
NPN -65°C~200°C TJ 10nA ICBO TO-205AD, TO-39-3 Metal Can Bulk Through Hole
2N2218 PBFREE Overview
As explained above, DC current gain takes into account the rate at which the base current flows through the collector current; therefore, DC current gain for this device is 40 @ 150mA 10V.In VCE saturation, Ic is at its maximum value (saturated), and the vce saturation (Max) is 1V @ 50mA, 500mA.Device displays Collector Emitter Breakdown (30V maximal voltage).
2N2218 PBFREE Features
the DC current gain for this device is 40 @ 150mA 10V
the vce saturation(Max) is 1V @ 50mA, 500mA
2N2218 PBFREE Applications
There are a lot of Central Semiconductor Corp
2N2218 PBFREE applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
