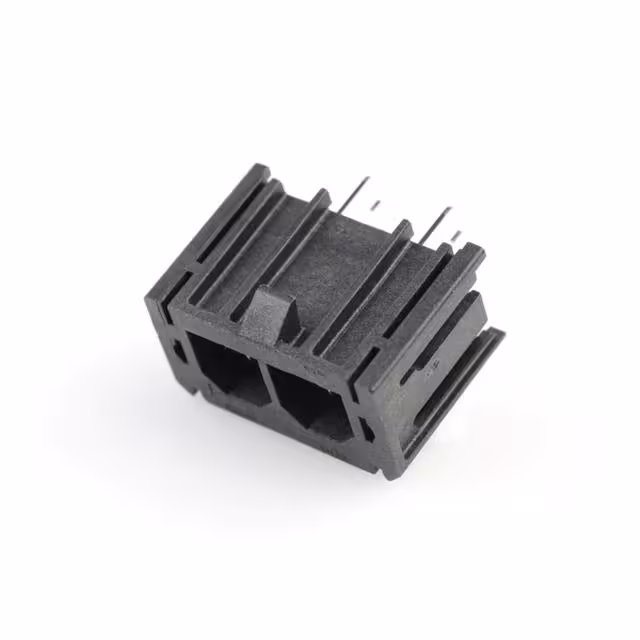

43160-1302

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Shell Material :

GLASS FILLED POLYAMIDE46

Additional Feature :

Sabre

Flammability :

94V-0

Min Operating Temperature :

-40 °C

IEC Conformance :

No

Product :

Headers

Insertion Force-Max :

13.344 N

Current Rating :

18 A

Product Status :

Active

Number of Ports :

1(Port)

Contact Gender :

Pin (Male)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reliability :

COMMERCIAL

Max Operating Temperature :

75 °C

PCB Contact Row Spacing :

3.175 mm

Housing Color :

Black

Withdrawl Force-Min :

2.224 N

UL Flammability Code :

94V-0

Body Breadth :

0.454 inch

Type :

Wire to Board

Option :

GENERAL PURPOSE

Product Height (mm) :

11.53(mm)

Voltage Rating :

600 V

Packaging :

Tray

Current Rating (Max) :

18/Contact(A)

Voltage Rating Max :

600V

Mounting Option 1 :

LOCKING

Contact Resistance Max :

30(mohm)

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Pitch (mm) :

7.5(mm)

Product Length (mm) :

21.08(mm)

Housing Material :

Nylon 4/6

Empty Shell :

No

Operating Temperature Min Deg. C :

-40C

Contact Type :

-

Package :

Box

Number of Rows :

1 Row

Mounting Angle :

RIGHT ANGLE

Termination :

Through Hole

Mount :

Through Hole

Connector Type :

RECTANGULAR POWER CONNECTOR

Number of Terminals :

4

Application :

Power

Pitch :

7.5 mm

Termination Style :

Solder Pin

Maximum Operating Temperature :

+ 75 C

Termination Method :

Solder

PCB Contact Pattern :

RECTANGULAR

Accessory Type :

-

Minimum Operating Temperature :

- 40 C

Brand :

Molex

Product Type :

Headers and Wire Housings

Number of Positions :

2 Position

MIL Conformance :

No

Tradename :

Sabre

Contact Pattern :

RECTANGULAR

Insulation Resistance :

1000000000 Ω

Operating Temperature Max Deg. C :

75C

DIN Conformance :

No

Board Mounting Option :

SPLIT BOARD LOCK

Contact Finish Termination :

TIN (35) OVER COPPER

Filter Feature :

No

Glow Wire Compliant :

Compliant

JESD-609 Code :

e3

Contact Resistance :

30 mΩ

Product Depth (mm) :

19.78(mm)

Number of Circuits :

2

Manufacturer :

Molex

Contact Material :

Brass

RoHS :

Details

Pbfree Code :

yes

Flammability Rating :

UL 94 V-0

Termination Post Length :

5.33 mm

Body/Shell Style :

Receptacle

Mating Contact Pitch :

0.295 inch

Body Depth :

0.581 inch

Total Number of Contacts :

2

HTS Code :

8536.69.40.30

Body Orientation :

RIGHT ANGLE

Terminal Pitch :

7.493 mm

Lifecycle Status :

Production (Last Updated: 2 years ago)

Gender :

HDR

Termination Type :

Solder

Series :

43160

Country of Origin :

US

Product Category :

Headers and Wire Housings

Product Diameter (mm) :

Not Required(mm)

Mixed Contacts :

No

ECCN Code :

EAR99

Subcategory :

Headers and Wire Housings

Number of Contact Rows :

1

Number of Contacts :

2(POS)

Contact Plating :

Tin

Insulator Color :

Black

Plating :

Tin

Orientation :

RIGHT ANGLE

Terminal Length :

0.21 inch

Mounting Type :

BOARD

Operating Temp Range :

-40C to 75C

Reach Compliance Code :

Compliant

Mounting Style :

Through Hole
