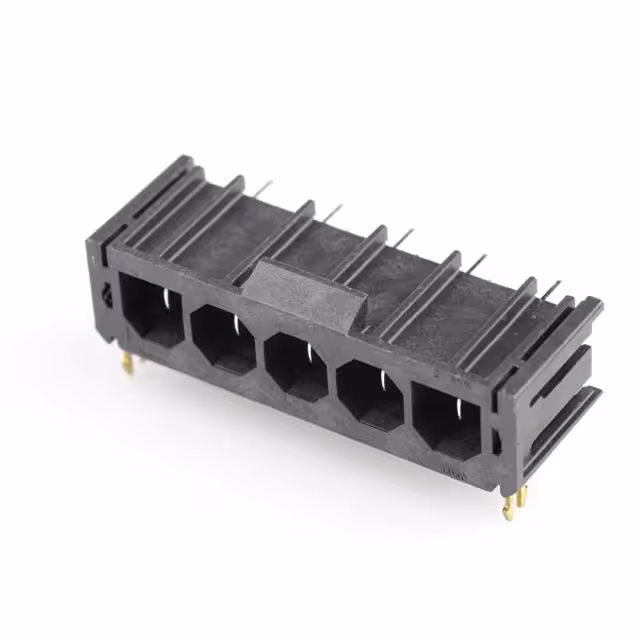

43160-5305

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Gender :

HDR

Board Mounting Option :

SPLIT BOARD LOCK

Orientation :

RIGHT ANGLE

Mounting Option 1 :

LOCKING

RoHS :

Details

Body/Shell Style :

Receptacle

Subcategory :

Headers and Wire Housings

Termination Post Length :

5.33 mm

Total Number of Contacts :

3

Mounting Style :

Through Hole

Mating Contact Pitch :

0.295 inch

Current Rating (Max) :

18/Contact(A)

Contact Type :

-

PCB Contact Row Spacing :

3.175 mm

Maximum Operating Temperature :

+ 75 C

Insertion Force-Max :

13.344 N

Product Length (mm) :

43.56(mm)

Mixed Contacts :

No

Empty Shell :

No

Filter Feature :

No

Withdrawl Force-Min :

2.224 N

Accessory Type :

-

Series :

*

ECCN Code :

EAR99

Product Height (mm) :

11.53(mm)

Flammability :

94V-0

Type :

Wire to Board

Terminal Pitch :

7.493 mm

Brand :

Molex

Contact Pattern :

RECTANGULAR

Housing Material :

Nylon 4/6

Number of Contact Rows :

1

HTS Code :

8536.69.40.30

Body Depth :

0.581 inch

Reach Compliance Code :

Compliant

Pbfree Code :

yes

Body Breadth :

0.454 inch

Body Orientation :

RIGHT ANGLE

Shell Material :

GLASS FILLED POLYAMIDE46

Connector Type :

RECTANGULAR POWER CONNECTOR

UL Flammability Code :

94V-0

Row Spacing :

-

PCB Contact Pattern :

RECTANGULAR

Pitch (mm) :

7.5(mm)

Option :

GENERAL PURPOSE

IEC Conformance :

No

Product Type :

Headers and Wire Housings

Application :

Power

Number of Contacts :

5(POS)

Contact Plating :

TIN OVER NICKEL

Minimum Operating Temperature :

- 40 C

Insulation Resistance :

1000000000 Ω

Product Depth (mm) :

19.78(mm)

Contact Resistance :

30 mΩ

Termination Type :

Solder

Tradename :

Sabre

Pitch :

7.5 mm

Reliability :

COMMERCIAL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

MIL Conformance :

No

Terminal Length :

0.15 inch

Voltage Rating Max :

600V

Manufacturer :

Molex

Mounting Type :

BOARD

Additional Feature :

Sabre

Product :

Headers

Termination Style :

Solder Pin

Product Category :

Headers and Wire Housings

Packaging :

Tray

Current Rating :

18 A

Flammability Rating :

UL 94 V-0

Insulator Color :

Black

Product Status :

Active

Contact Resistance Max :

30(mohm)

JESD-609 Code :

e3

Operating Temp Range :

-40C to 75C

Voltage Rating :

600 V

Contact Material :

Brass

DIN Conformance :

No

Housing Color :

Black

Number of Rows :

1 Row

Mounting Angle :

RIGHT ANGLE

Contact Finish Termination :

TIN (35) OVER COPPER

Termination Method :

Solder

Package :

Box

Number of Positions :

5 Position

Contact Gender :

Pin (Male)
