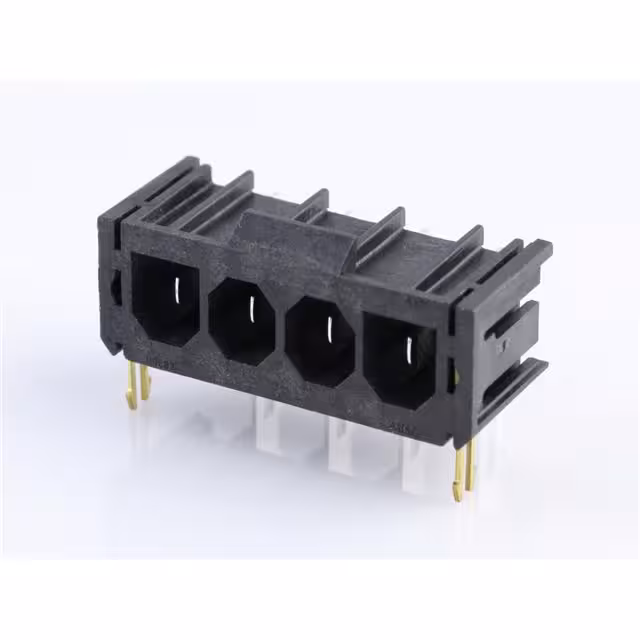

43160-7304

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Insulation Resistance :

1000000000 Ω

Connector Type :

RECTANGULAR POWER CONNECTOR

Current Rating :

18 A

Mounting Type :

BOARD

Number of Positions :

4 Position

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.454 inch

Shell Material :

GLASS FILLED POLYAMIDE46

Gender :

HDR

Voltage Rating Max :

600V

Empty Shell :

No

Withdrawl Force-Min :

2.224 N

Series :

43160

JESD-609 Code :

e3

Pitch :

7.5 mm

Product :

Headers

Mounting Style :

Through Hole

Product Depth (mm) :

19.78(mm)

Packaging :

Tray

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Board Mounting Option :

SPLIT BOARD LOCK

Maximum Operating Temperature :

+ 75 C

DIN Conformance :

No

Contact Resistance :

30 mΩ

Accessory Type :

-

Product Type :

Headers and Wire Housings

Mating Contact Pitch :

0.295 inch

PCB Contact Row Spacing :

3.175 mm

Contact Material :

Brass

Mounting Option 1 :

LOCKING

Number of Contact Rows :

1

RoHS :

Details

Body/Shell Style :

Receptacle

Terminal Pitch :

7.493 mm

Pbfree Code :

yes

ECCN Code :

EAR99

Operating Temperature Max Deg. C :

75C

Number of Terminals :

8

Contact Type :

-

Housing Color :

Black

Number of Ports :

1(Port)

Pitch (mm) :

7.5(mm)

Body Depth :

0.581 inch

Total Number of Contacts :

4

Insertion Force-Max :

13.344 N

Operating Temperature Min Deg. C :

-40C

Option :

GENERAL PURPOSE

Flammability Rating :

UL 94 V-0

Termination Method :

Solder

Subcategory :

Headers and Wire Housings

Contact Resistance Max :

30(mohm)

HTS Code :

8536.69.40.30

Mixed Contacts :

No

IEC Conformance :

No

Application :

Power, Wire-to-Board

Filter Feature :

No

Product Height (mm) :

11.53(mm)

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

- 40 C

Type :

Wire to Board

Termination Post Length :

5.33 mm

Additional Feature :

Sabre

Insulator Color :

Black

Voltage Rating :

600 V

Contact Finish Termination :

TIN (35) OVER COPPER

Operating Temp Range :

-40C to 75C

Terminal Length :

0.21 inch

Brand :

Molex

Product Status :

Active

Body Orientation :

RIGHT ANGLE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Manufacturer :

Molex

Number of Rows :

1 Row

Current Rating (Max) :

18/Contact(A)

Number of Contacts :

4(POS)

Contact Gender :

Pin (Male)

Product Category :

Headers and Wire Housings

UL Flammability Code :

94V-0

Termination Type :

Solder

Tradename :

Sabre

Contact Plating :

Tin

Product Diameter (mm) :

Not Required(mm)

Mounting Angle :

RIGHT ANGLE

Housing Material :

Nylon 4/6

Package :

Box

Termination Style :

Solder Pin

Product Length (mm) :

36.07(mm)

MIL Conformance :

No
