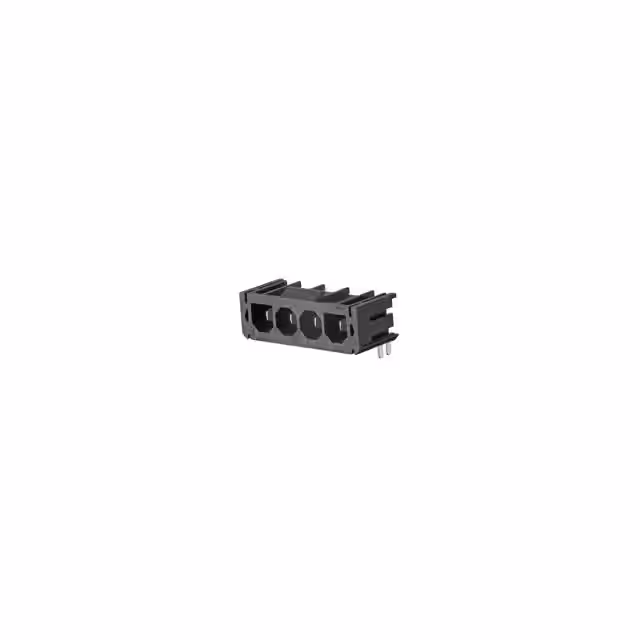

43160-5105

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Insulator Color :

Black

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

BOARD

Body Orientation :

RIGHT ANGLE

Accessory Type :

-

Connector Type :

RECTANGULAR POWER CONNECTOR

Termination Type :

Solder

Operating Temp Range :

-40C to 75C

Termination Post Length :

3.81 mm

Subcategory :

Headers and Wire Housings

Voltage Rating Max :

600VDC/600VAC

Packaging :

Tray

PCB Contact Row Spacing :

3.175 mm

Gender :

Header

Contact Resistance :

30 mΩ

Mounting Style :

Through Hole

Type :

Wire to Board

UL Flammability Code :

94V-0

JESD-609 Code :

e3

Total Number of Contacts :

5

Insulation Resistance :

1000000000 Ω

Product :

Headers

Product Type :

Headers and Wire Housings

Insertion Force-Max :

13.344 N

Package :

Bulk

Contact Plating :

Tin

Mounting :

Through Hole

Withdrawl Force-Min :

2.224 N

Contact Material :

Brass

Operating Temperature Min Deg. C :

-40C

Current Rating (Max) :

18/Contact(A)

Termination Method :

Solder

Empty Shell :

No

Terminal Pitch :

7.493 mm

Pitch (mm) :

7.5(mm)

Number of Terminals :

10

Additional Feature :

Sabre

Housing Material :

Nylon 4/6

Body Breadth :

0.454 inch

MIL Conformance :

No

Product Length (mm) :

43.56(mm)

Pitch :

7.5000 mm

Number of Contact Rows :

1

Product Category :

Headers and Wire Housings

Number of Ports :

1(Port)

Option :

GENERAL PURPOSE

RoHS :

Details

Series :

43160

IEC Conformance :

No

Number of Contacts :

5(POS)

Contact Finish Termination :

Tin (Sn)

Product Depth (mm) :

19.78(mm)

Board Mounting Option :

SPLIT BOARD LOCK

PCB Contact Pattern :

RECTANGULAR

Termination Style :

Solder Pin

Product Diameter (mm) :

Not Required(mm)

Brand :

Molex

Contact Gender :

Pin (Male)

Mating Contact Pitch :

0.295 inch

Contact Type :

-

Product Height (mm) :

11.53(mm)

Mixed Contacts :

No

Body Depth :

0.581 inch

Terminal Length :

0.21 inch

Reach Compliance Code :

Compliant

Mounting Option 1 :

LOCKING

Mounting Angle :

RIGHT ANGLE

Factory Lead Time :

10 Weeks

Product Status :

Active

Shell Material :

GLASS FILLED POLYAMIDE46

Reliability :

COMMERCIAL

DIN Conformance :

No

Filter Feature :

No

Number of Rows :

1 Row

Tradename :

Sabre

Contact Pattern :

RECTANGULAR

Row Spacing :

-

Number of Positions :

5 Position

Operating Temperature Max Deg. C :

75C

Manufacturer :

Molex
