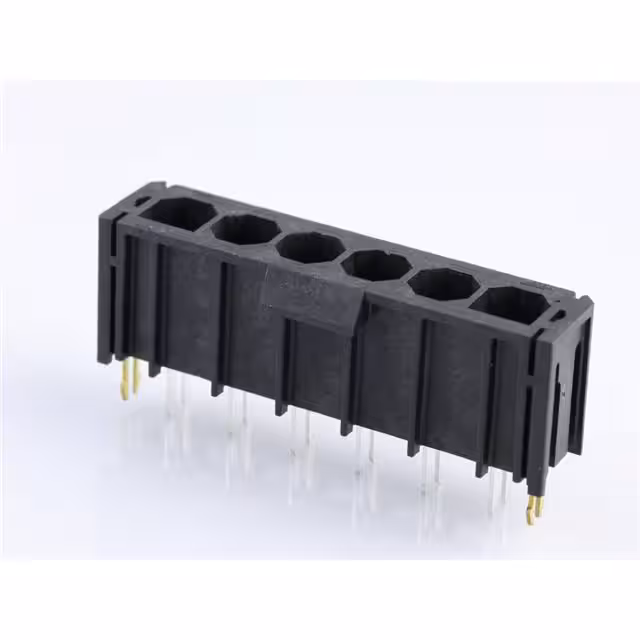

43160-6306

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Brand :

Molex

Reference Standard :

CSA, UL

Product Category :

Headers and Wire Housings

Mounting Angle :

Straight

Contact Material :

Brass

Voltage Rating :

600 V

Option :

GENERAL PURPOSE

Packaging :

Bag

Orientation :

Vertical

Product Length (mm) :

51.05(mm)

IEC Conformance :

No

Mixed Contacts :

No

Dielectric Withstanding Voltage :

5000VAC V

JESD-609 Code :

e3

Durability :

25 Cycles

Withdrawl Force-Min :

4.448 N

Body/Shell Style :

Receptacle

Voltage Rating Max :

600V

Additional Feature :

SABRE, POLARIZED, POSITIVE LOCK

Minimum Operating Temperature :

- 40 C

Terminal Pitch :

7.493 mm

Gender :

HDR

Termination Method :

Solder

Accessory Type :

-

Empty Shell :

No

Contact Resistance Max :

30(mohm)

Mounting Type :

BOARD

Contact Gender :

Pin (Male)

Termination Post Length :

5.33 mm

Plating Thickness :

80u inch

Pitch (mm) :

7.5(mm)

Termination Style :

Solder Pin

ECCN Code :

EAR99

Tradename :

Sabre

RoHS :

Details

Number of Ports :

1(Port)

Housing Color :

Black

Product Status :

Active

Mating Contact Pitch :

0.295 inch

Flammability :

94V-0

Contact Style :

BLADE PIN-SKT

Shell Material :

GLASS FILLED POLYAMIDE46

Series :

43160

Product Diameter (mm) :

Not Required(mm)

Pbfree Code :

yes

Current Rating :

18 A

Mounting Style :

Through Hole

Mounting Option 2 :

LOCKING

Termination Type :

Solder

Current Rating (Max) :

18/Contact(A)

Contact Pattern :

RECTANGULAR

Board Mounting Option :

SPLIT BOARD LOCK

Manufacturer :

Molex

Housing Material :

Nylon 4/6

Contact Type :

-

Product :

Headers

Maximum Operating Temperature :

+ 75 C

PCB Contact Pattern :

RECTANGULAR

Body Depth :

0.581 inch

MIL Conformance :

No

Contact Plating :

TIN OVER NICKEL

Polarization Key :

POLARIZED HOUSING

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Rows :

1 Row

Product Type :

Headers and Wire Housings

Reach Compliance Code :

Compliant

Rated Current (Signal) :

18 A

Product Height (mm) :

19.78(mm)

Flammability Rating :

UL 94 V-0

Number of Contact Rows :

1

Insertion Force-Max :

13.344 N

DIN Conformance :

No

PCB Contact Row Spacing :

3.175 mm

Operating Temperature Min Deg. C :

-40C

Total Number of Contacts :

6

HTS Code :

8536.69.40.30

UL Flammability Code :

94V-0

Subcategory :

Headers and Wire Housings

Operating Temperature Max Deg. C :

75C

Number of Contacts :

6(POS)

Number of Terminals :

12

Operating Temp Range :

-40C to 75C

Package :

Box

Connector Type :

RECTANGULAR POWER CONNECTOR

Product Depth (mm) :

11.53(mm)

Terminal Length :

0.15 inch

Mounting Option 1 :

POLARIZED LCK

Application :

Power

Number Of PCB Rows :

2

Filter Feature :

No

Body Orientation :

Straight

Insulation Resistance :

1000000000 Ω

Contact Finish Termination :

TIN (35) OVER COPPER

Reliability :

COMMERCIAL

Type :

Wire to Board

Number of Positions :

6 Position

Insulator Color :

Black

Contact Resistance :

10 MΩ

Pitch :

7.5 mm
