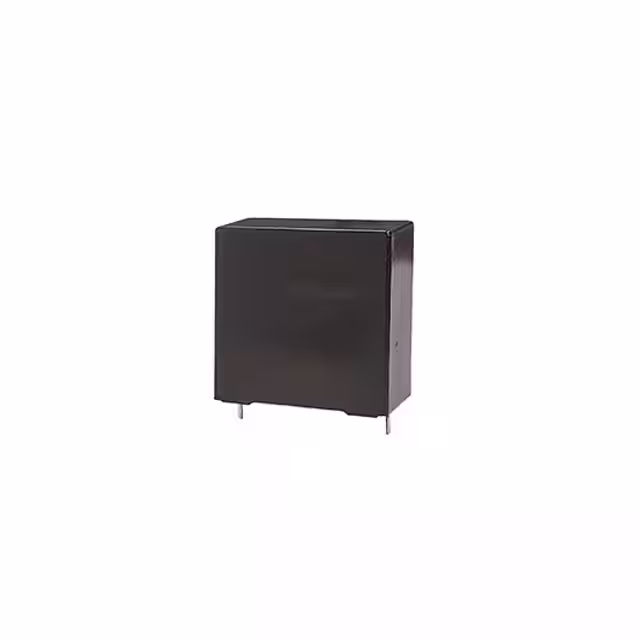

BLH505K112A082

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Mounting Type :

Through Hole

Package :

Bulk

Termination :

PC Pins

Series :

BLH

Product Type :

Film Capacitors

Ratings :

AEC-Q200

Height :

22 mm

Length :

32 mm

Height - Seated (Max) :

1.488" (37.80mm)

Lead Spacing :

1.083" (27.50mm)

Tolerance :

±10%

Product :

DC Link Film Capacitors

Capacitance :

5 µF

Operating Temperature :

-40°C ~ 105°C

Voltage Rating - AC :

-

ESR :

9.5 mOhms

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Dielectric Material :

Polypropylene (PP), Metallized

Package / Case :

Radial

Minimum Operating Temperature :

- 40 C

ESR (Equivalent Series Resistance) :

9.5 mOhms

Product Status :

Active

Subcategory :

Capacitors

Width :

37 mm

Applications :

Automotive; DC Link, DC Filtering

Number of Pins :

2 Pin

Lead Style :

Straight

Lead Diameter :

0.8 mm

Size / Dimension :

1.260" L x 0.866" W (32.00mm x 22.00mm)

Termination Style :

Axial

Maximum Operating Temperature :

+ 105 C

Voltage Rating - DC :

1100V (1.1kV)
