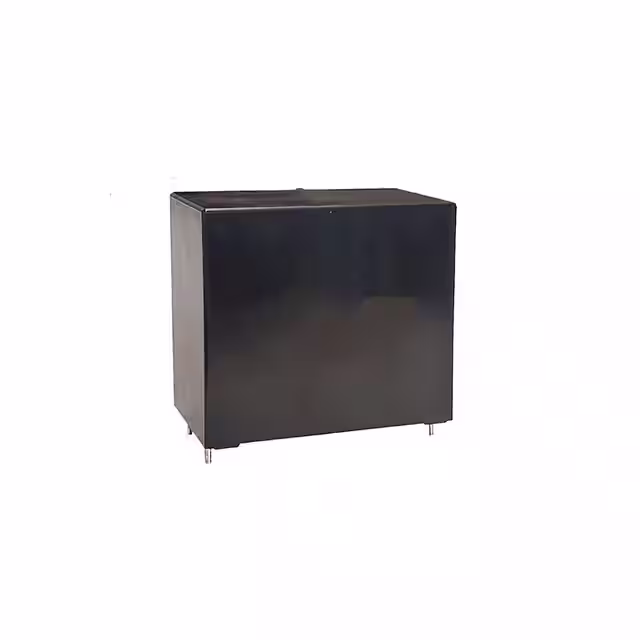

BLH506K451C014

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

ESR (Equivalent Series Resistance) :

6.5 mOhms

Product :

DC Link Film Capacitors

Height :

43 mm

Series :

BLH

Mounting Type :

Through Hole

Voltage Rating - AC :

-

Operating Temperature :

-40°C ~ 105°C

Height - Seated (Max) :

0.898" (22.80mm)

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Number of Pins :

4 Pin

Length :

57.5 mm

Lead Diameter :

1.2 mm

Minimum Operating Temperature :

- 40 C

Tolerance :

±10%

ESR :

6.5 mOhms

Package :

Bulk

Termination :

PC Pins

Maximum Operating Temperature :

+ 105 C

Size / Dimension :

2.264" L x 1.693" W (57.50mm x 43.00mm)

Applications :

Automotive; DC Link, DC Filtering

Voltage Rating - DC :

450V

Width :

22 mm

Dielectric Material :

Polypropylene (PP), Metallized

Subcategory :

Capacitors

Package / Case :

Radial - 4 Leads

Product Status :

Active

Product Type :

Film Capacitors

Capacitance :

50 µF

Termination Style :

Axial

Lead Spacing :

2.067" (52.50mm)

Lead Style :

Straight

Ratings :

AEC-Q200
