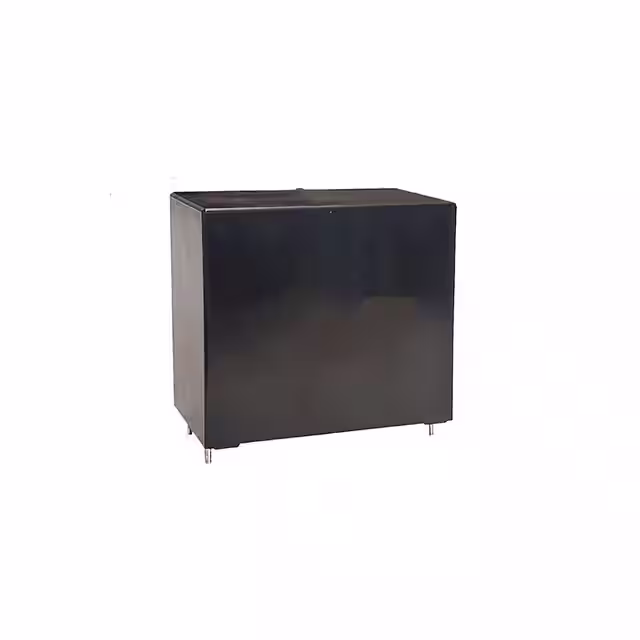

BLH505K901A062

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Capacitance Tolerance :

± 10%

Minimum Operating Temperature :

- 40 C

Termination Style :

Axial

Maximum Operating Temperature :

+ 105 C

Voltage Rating - DC :

900V

Height - Seated (Max) :

1.134" (28.80mm)

Lead Spacing :

1.083" (27.50mm)

Applications :

Automotive; DC Link, DC Filtering

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

RMS Current (Irms) :

7A

Width :

28 mm

Product Length :

32mm

Dielectric Material :

Polypropylene (PP), Metallized

Length :

32 mm

Size / Dimension :

2.264" L x 1.181" W (57.50mm x 30.00mm)

Lead Diameter :

0.8 mm

ESR :

0.0125Ohm

Diameter :

-

Capacitance :

5 µF

Voltage Rating - AC :

-

Product Status :

Active

Package :

Bulk

ESR (Equivalent Series Resistance) :

12.5 mOhms

Product Width :

18mm

Ratings :

AEC-Q200

Lead Style :

Straight

Height :

18 mm

Number of Pins :

2 Pin

Operating Temperature :

-40°C ~ 105°C

Series :

BLH

Product :

DC Link Film Capacitors

Product Type :

Film Capacitors

Tolerance :

±10%

Termination :

PC Pins

Product Height :

28mm

Qualification :

AEC-Q200

Ripple Current :

-

Subcategory :

Capacitors
