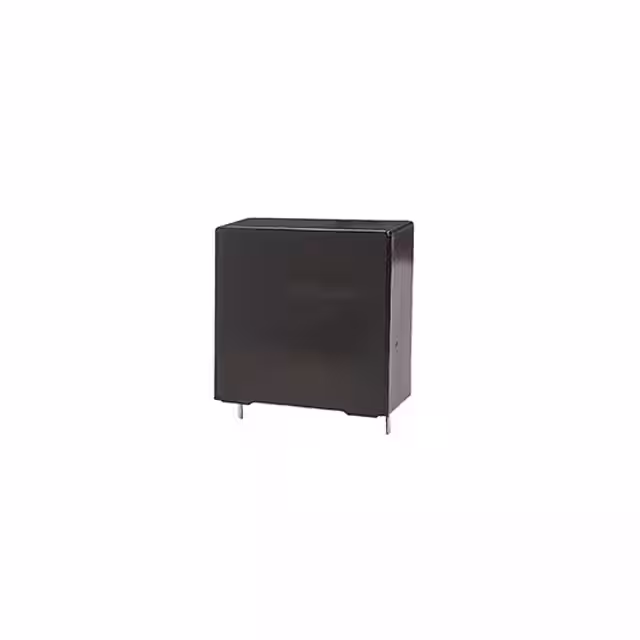

BLH505K122B042

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Termination Style :

Axial

Series :

BLH

Termination :

PC Pins

Voltage Rating - DC :

1200V (1.2kV)

Package :

Bulk

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Capacitance :

5 µF

ESR :

15.5 mOhms

Lead Spacing :

1.476" (37.50mm)

Height :

22 mm

Product Status :

Active

Applications :

Automotive; DC Link, DC Filtering

Tolerance :

±10%

Width :

33.5 mm

Product Type :

Film Capacitors

Maximum Operating Temperature :

+ 105 C

Dielectric Material :

Polypropylene (PP), Metallized

Minimum Operating Temperature :

- 40 C

Lead Diameter :

1 mm

Subcategory :

Capacitors

Operating Temperature :

-40°C ~ 105°C

Ratings :

AEC-Q200

ESR (Equivalent Series Resistance) :

15.5 mOhms

Height - Seated (Max) :

1.350" (34.30mm)

Lead Style :

Straight

Mounting Type :

Through Hole

Product :

DC Link Film Capacitors

Voltage Rating - AC :

-

Number of Pins :

2 Pin

Size / Dimension :

1.673" L x 0.866" W (42.50mm x 22.00mm)

Package / Case :

Radial

Length :

42.5 mm
