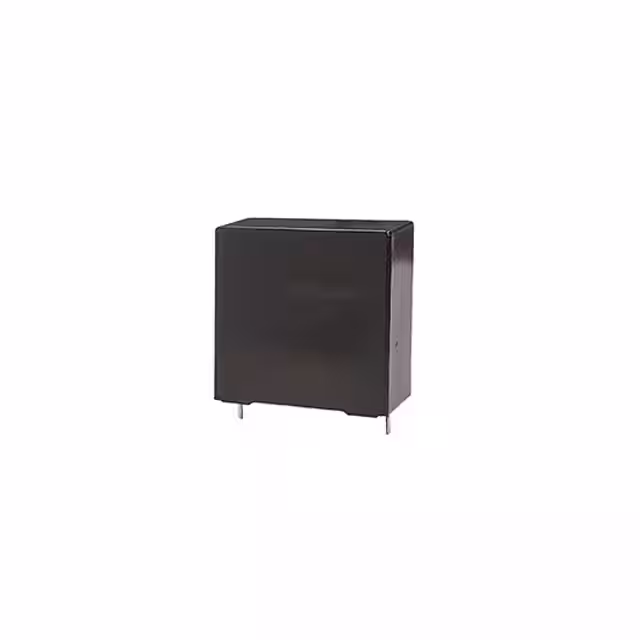

BLH505K122A082

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Tolerance :

±10%

Height :

22 mm

Product :

DC Link Film Capacitors

Number of Pins :

2 Pin

Voltage Rating - DC :

1200V (1.2kV)

Termination :

PC Pins

Width :

37 mm

Lead Spacing :

1.083" (27.50mm)

Termination Style :

Axial

Lead Diameter :

0.8 mm

ESR :

12 mOhms

Package :

Bulk

Ratings :

AEC-Q200

Operating Temperature :

-40°C ~ 105°C

Lead Style :

Straight

Features :

85C/85% Humidity, THB, Low ESR, Low ESL, Long Life

Dielectric Material :

Polypropylene (PP), Metallized

Package / Case :

Radial

Subcategory :

Capacitors

Series :

BLH

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Size / Dimension :

1.260" L x 0.866" W (32.00mm x 22.00mm)

Minimum Operating Temperature :

- 40 C

Length :

32 mm

Capacitance :

5 µF

Applications :

Automotive; DC Link, DC Filtering

Product Type :

Film Capacitors

ESR (Equivalent Series Resistance) :

12 mOhms

Voltage Rating - AC :

-

Height - Seated (Max) :

1.488" (37.80mm)

Mounting Type :

Through Hole
