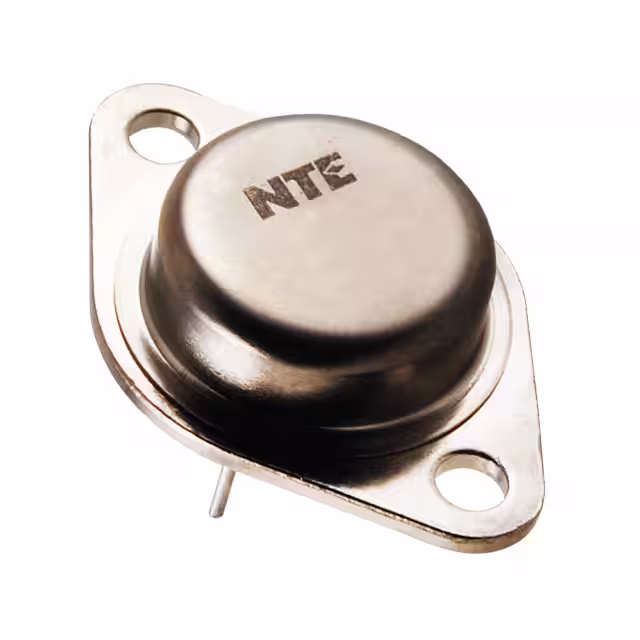

NTE219

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Category :

Bipolar Power

Current - Collector (Ic) (Max) :

15 A

Mounting :

Through Hole

Frequency :

2.5(MHz)

Transistor Application :

SWITCHING

Package Type :

TO-3

Pin Count :

2 +Tab

Reach Compliance Code :

Unknown

Number of Elements :

1

Transistor Element Material :

SILICON

DC Current Gain :

20

DC Current Gain-Min (hFE) :

5

Configuration :

Single

Operating Temp Range :

-65C to 200C

Subcategory :

Other Transistors

JEDEC-95 Code :

TO-3

Surface Mount :

No

Qualification Status :

Not Qualified

Output Power :

Not Required(W)

Current - Collector Cutoff (Max) :

700µA

Product Status :

Active

Voltage - Collector Emitter Breakdown (Max) :

60 V

Supplier Device Package :

TO-3

Power Dissipation-Max (Abs) :

150 W

Operating Temperature :

-65°C ~ 200°C (TJ)

Series :

-

Terminal Position :

BOTTOM

Terminal Form :

PIN/PEG

Polarity/Channel Type :

PNP

Case Connection :

COLLECTOR

Collector Current-Max (IC) :

15 A

Package / Case :

TO-204AA, TO-3

Emitter-Base Voltage :

7(V)

Power Dissipation Ambient-Max :

115 W

Power - Max :

115 W

ECCN Code :

EAR99

Manufacturer :

NTE Electronics

Rad Hardened :

No

Frequency - Transition :

2.5MHz

Collector-Base Voltage :

100(V)

Collector-Emitter Voltage-Max :

60 V

Mounting Type :

Through Hole

Package :

Bag

JESD-30 Code :

O-MBFM-P2

DC Current Gain (hFE) (Min) @ Ic, Vce :

20 @ 4A, 4V

Vce Saturation (Max) @ Ib, Ic :

3V @ 3.3A, 10A

Number of Terminals :

2

Power Dissipation :

115(W)

Transistor Type :

PNP

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Transistor Polarity :

PNP

Operating Temperature Classification :

Military

Collector Current (DC) :

15(A)

Package Shape :

Round
