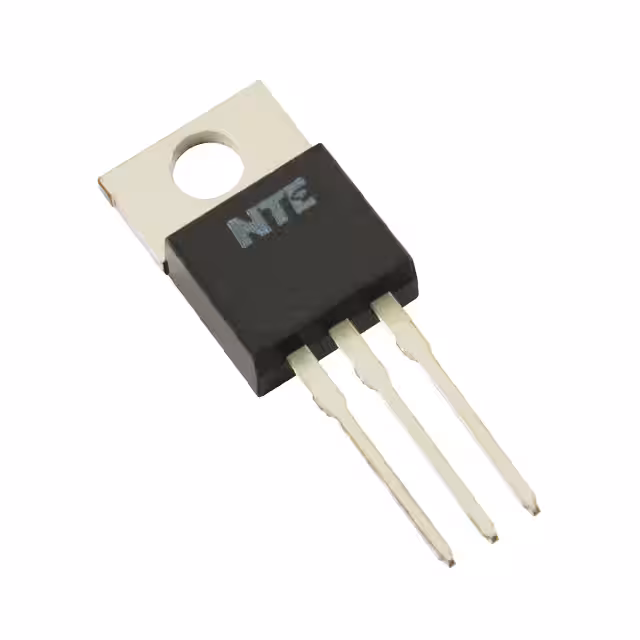

NTE2332

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Special Purpose

Collector Current-Max (IC) :

2 A

Reach Compliance Code :

Unknown

JEDEC-95 Code :

TO-220AB

JESD-30 Code :

R-PSFM-T3

Qualification Status :

Not Qualified

Power Dissipation-Max (Abs) :

20 W

Subcategory :

Other Transistors

ECCN Code :

EAR99

Applications :

GENERAL PURPOSE

Configuration :

DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

DC Current Gain-Min (hFE) :

1000

Product Status :

Active

Supplier Device Package :

-

Surface Mount :

No

Pin Count :

3

Transistor Type :

NPN - Darlington

Series :

-

Transistor Element Material :

SILICON

Collector-Emitter Voltage-Max :

50 V

Power Dissipation Ambient-Max :

20 W

Terminal Position :

Single

Case Connection :

COLLECTOR

Number of Terminals :

3

Polarity/Channel Type :

NPN

Current Rating (Amps) :

2A

Voltage - Rated :

-

Package / Case :

TO-220-3

Terminal Form :

THROUGH-HOLE

Package :

Bag

Transistor Application :

SWITCHING

Package Shape :

RECTANGULAR

Mounting Type :

Through Hole

Manufacturer :

NTE Electronics

Number of Elements :

1
